DS90CR285: LVCMOS Pin Connection

Dylan You

Part Number: DS90CR285
Other Parts Discussed in Thread: DS90CR286

Dear Teams,

My customer is asking how to connect the data to the pin if they have a 8 bits LVCMOS data input for DS90CR285? Also, what is the order or sequence they need to connect for individual pins?

Thanks!

Dylan

over 4 years ago

0 Michael.Walker over 4 years ago

TI__Mastermind 19720 points

Hi Dylan,

if you are using the DS90CR286 as the receiver as long as the data is connected to the proper pin on the output of the DS90CR286 .

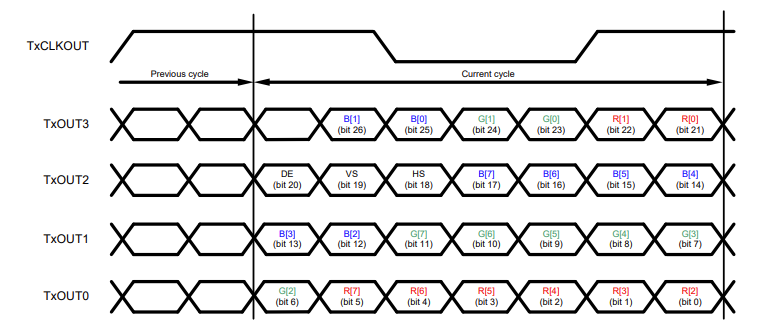

You can use the following mapping and Figure 17 on the DS90CR285's datasheet to map your LVCMOS data

If you are connecting the DS90CR285 to a display, the displays datasheet will show how to map the specific signals. you can use the displays datasheet and Figure 17 to determine the connections.

Regards,

Michael W.

0 Dylan You over 4 years ago in reply to Michael.Walker

TI__Intellectual 2630 points

Thanks for your information!
