DP83822I: MDI to MDI connection

Vincent Chen64988

Expert 4480 points

Part Number: DP83822I

Hi Team,

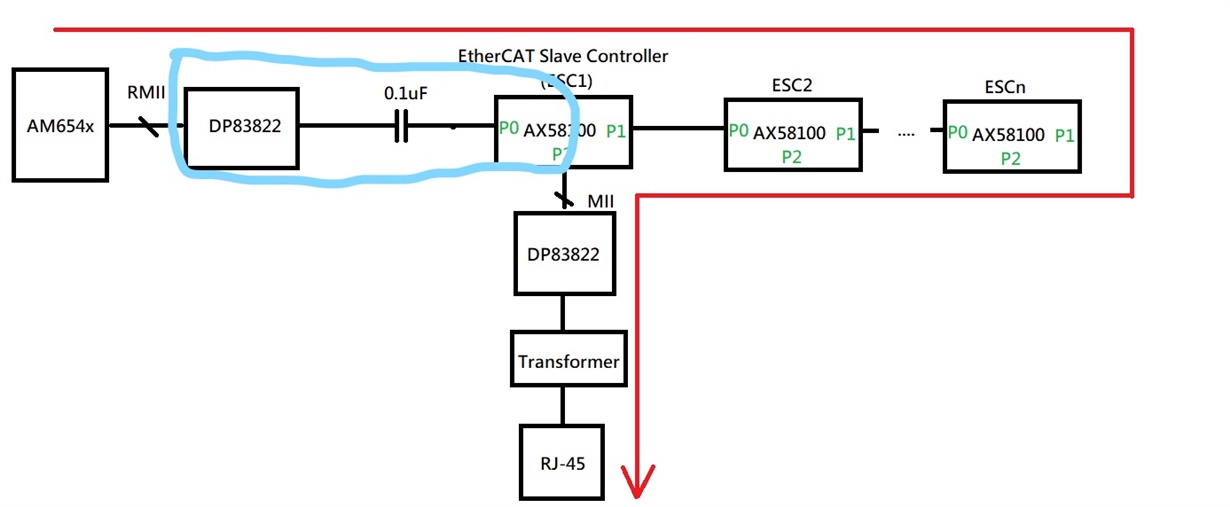

My customer has a new project and the Ethernet(EtherCAT) structure is as following block diagram.

Since the P0 of AX58100 is MDI interface that is voltage mode, so

1. Can DP83822 connect to AX58100 via MDI interface directly?

2. Is it workable to establish connection between voltage mode and current mode on MDI interface. If it is possible, is there any reference circuit can be shared with customer?

Thanks a lot.

Vincent Chen

over 4 years ago

0 Nikhil Menon over 4 years ago

TI__Genius 11725 points

Hi Vincent,

We are looking into your question and will provide feedback by Friday.

Thank you,

Nikhil

0 Nikhil Menon over 4 years ago in reply to Nikhil Menon

TI__Genius 11725 points

Hi Vincent,

As you have shown in the diagram, it is possible to connect the DP83822 to the processor via the MDI interface, so long as there are DC blocking capacitors in between. A voltage mode and current mode line driver output can be connected with DC blocking capacitors.

Thank you,

Nikhil

0 Vincent Chen64988 over 4 years ago in reply to Nikhil Menon

TI__Expert 4480 points

Hi Nikhil,

Thanks a lot for your comment. Once customer's schematic design is finished I will review it and I will need your advice as well.

Best Regards,

Vincent Chen

0 Nikhil Menon over 4 years ago in reply to Vincent Chen64988

TI__Genius 11725 points

Hi Vincent,

Yes feel free to reach out for a schematic review. For now, I will be closing this thread.

Thank you,

Nikhil
