LMH0318: OUT0_VOD

K.Yaita

Part Number: LMH0318
Other Parts Discussed in Thread: LMH1218,

Hi Team,

I would like to ask about OUT0_VOD setting.

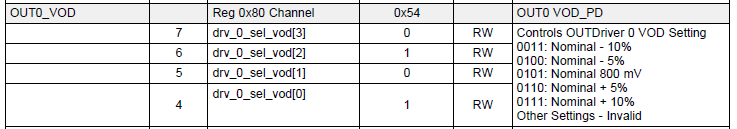

Programming guide shows the following and there is only 5 settings to adjust and other setting is invalid.

-LMH0318

On the other hand, it seems LMH1218 can be set more detailed setting (more than 5 setting).

-LMH1218

Should we consider adjusting OUT0_VOD of LMH0318 is resticted than that of LMH1218?

Best Regards,
Yaita

over 4 years ago

0 Nasser Mohammadi over 4 years ago

TI__Guru* 93570 points

Hi Yaita-San,

LMH1218 and LMH0318 have the same steps. Please use LMH1218 recommendation/settings.

Regards,, Nasser

0 K.Yaita over 4 years ago in reply to Nasser Mohammadi

Guru 29720 points

Hi Nasser-san,

Reg 0x80[7:4]=0010 is default value for LMH1218 and I believe output voltage is 800mV in default.
-LMH1218

On the other hand, Reg 0x80[7:4]=0101 is default value for LMH0318 and it shows output voltage is 800mV in default.
-LMH0318

>LMH1218 and LMH0318 have the same steps. Please use LMH1218 recommendation/settings.
Should we consider programming guide for LMH0318 is typo?

Best Regards,
Yaita

0 Nasser Mohammadi over 4 years ago in reply to K.Yaita

TI__Guru* 93570 points

Hi Yaita-San,

LMH1218 default setting is referring to 12G VOD while LMH0318 is referring to 3G VOD. So programming guide for LMH0318 is ok.

Regards,, Nasser
