DS90UB954-Q1EVM: Unknown Deserializer

Henry Wang3

Part Number: DS90UB954-Q1EVM
Other Parts Discussed in Thread: ALP

Hi Sir,

How to fix the DS90UB954-Q1EVM shown the "Unknown Deserializer" issue?

My customer had turned on/off my notebook and power on/off EVM several times, but it does still not work. They also installed the latest ALP utility and the ALP updated profile.

over 5 years ago

0 Vishy Viswanathan over 5 years ago

TI__Mastermind 21685 points

Henry,

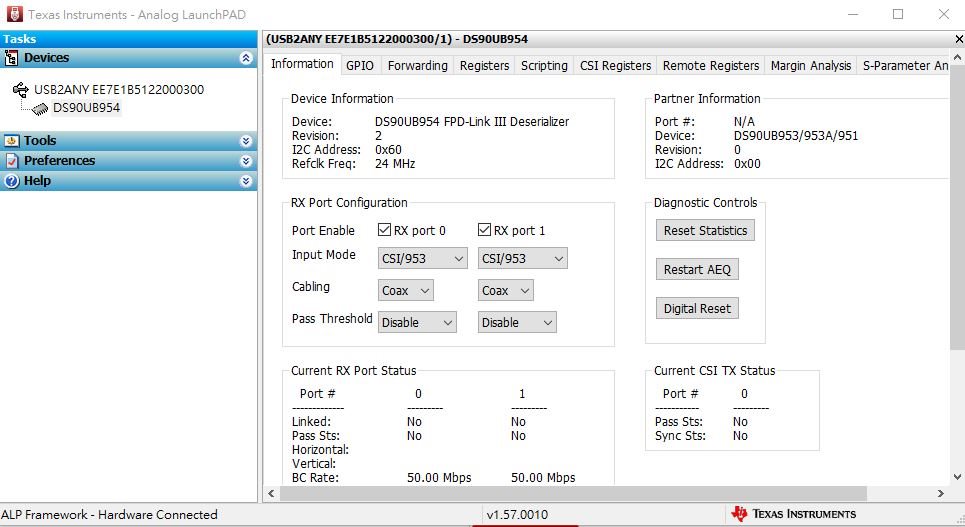

Thanks for the picture. Could you also upload 'ALP--About this Program' screen shot? See below. I would like to confirm ALP build date is latest.

I notice customer is using 1.8V VDDIO jumper setting. I was able to connect my 954 EVM to ALP with the same jumper settings as shown.

Thanks,

Vishy

0 Ian LI over 5 years ago in reply to Vishy Viswanathan

Prodigy 50 points

Hi Vishy,

My ALP version is same with your version, but I was not able to connect my 954 EVM whit ALP.

0 Vishy Viswanathan over 5 years ago in reply to Ian LI

TI__Mastermind 21685 points

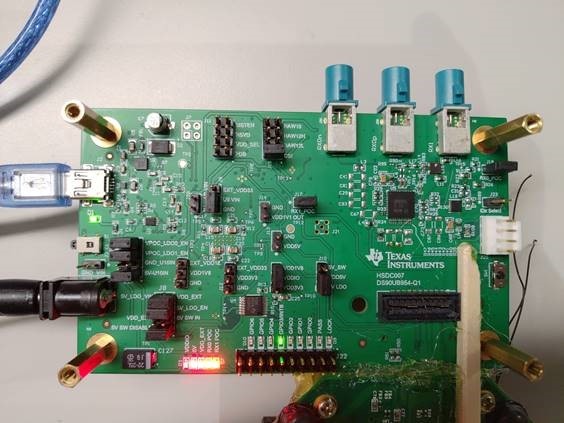

See below picture of my 954EVM setup

Jumper settings are same as your setup and ALP info tab screen shot below

Do you have I2C lines on J25 connected to some external controller? I see some black wires on your picture near the I2C header. It looks to me some setup issue.

Thanks,

Vishy

0 Ian LI over 5 years ago in reply to Vishy Viswanathan

Prodigy 50 points

Hi Vishy,

Thanks for your reply. I found reason of this problem, the external I2C pin (EXT_SCL/EXT_SDA) is short on the TI954 EVB botton MIPI connector.

Now ALP software was connected with TI954 already.
