DS90UH941AS-Q1EVM: Question on VDD18 circuit on EVM

Zhanpeng Li

Part Number: DS90UH941AS-Q1EVM

Hi Team,

have a question related our DS90UH941AS-Q1EVM.

from our evm user guide, attached the link below:

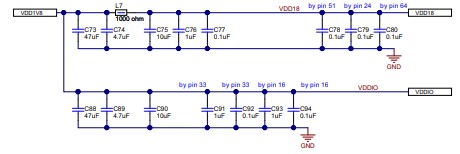

on Page30, attached schemtic below:

we are not sure is the BY PIN51 and BY PIN 64 is the correct way to connect vdd18, or it's a mistake on wirting this user guide/

could you help us verify?

Brandon

0 Hamzeh Jaradat over 4 years ago

Hello Zhanpeng,

thanks for your hint. This is a typo and should be corrected in future updates.

Connected to VDD1V8 should be only pins 24 and 61.

0 Zhanpeng Li over 4 years ago in reply to Hamzeh Jaradat

Hi Hamzeh,

Thanks for supporting.

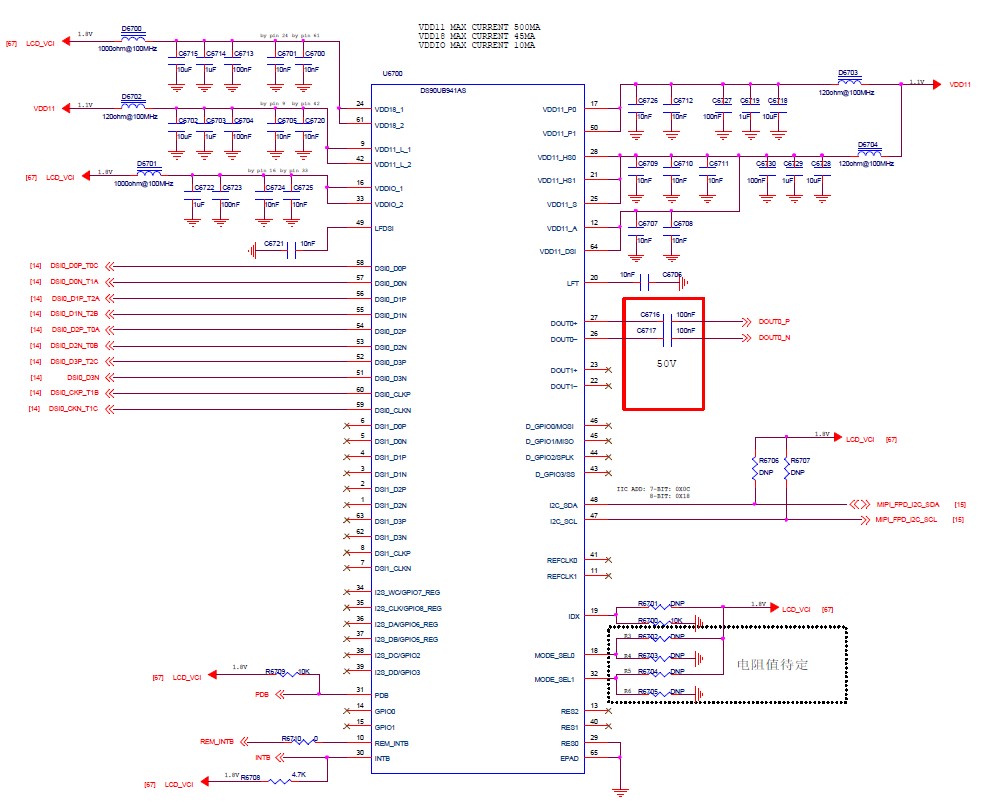

Could you help check the schematic that my customer now design?

Brandon.

0 Hamzeh Jaradat over 4 years ago in reply to Zhanpeng Li

Hello Brandon,

this is a completely different topic than the title of this thread. Please close this thread and open a new one with schmeatic review in the title!
