TUSB1064: SS signal protection

Hardy Xue

Part Number: TUSB1064
Other Parts Discussed in Thread: TPD1E01B04

Hi Team,

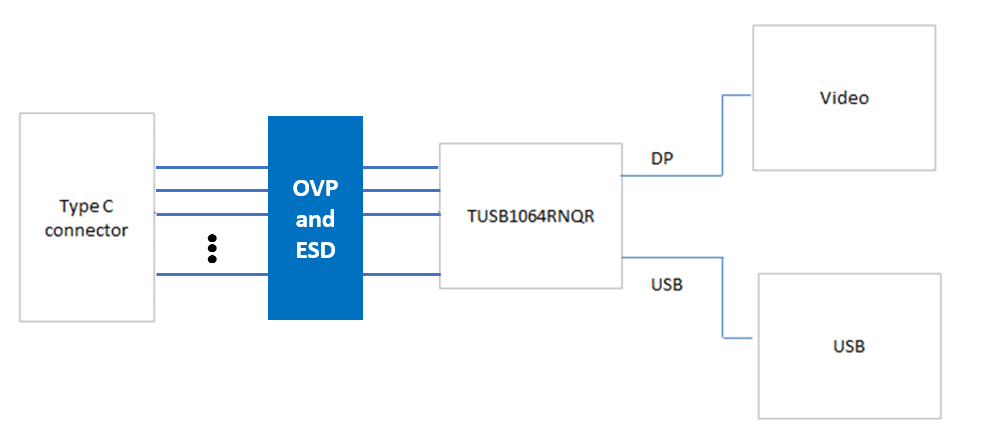

My customer need to add HV protection on SS+ signal path. Do we have solution to protect SS pin between Type C connector and TUSB1064RNQR (like TPS6S300 short-to-VBUS protection)?

Best regards,

Hardy

over 4 years ago

0 Brian Zhou over 4 years ago

TI__Guru*** 145815 points

any USB3 ESD protection device should work.

for OVP, PD group should have solution

0 Hari Patel1 over 4 years ago

TI__Genius 12700 points

Hi,

I would recommend taking a look at the TPD1E01B04 for ESD protection.

Thank you,

Hari

0 Hardy Xue over 4 years ago in reply to Hari Patel1

TI__Expert 3640 points

Hi Hari,

How about OVP for for SS pin? Do we have any suggested solution?

Best regards,

Hardy

0 Hari Patel1 over 4 years ago in reply to Hardy Xue

TI__Genius 12700 points

Hi Hardy,

Unfortunately the PD team does not cover OVP for SS pins. We use the ESD IC that I recommended on the SS pins for protection but since those pins are not too close to the SS pins, it is not at too much risk. I will reassign to the HSSC team to see if they might have any other solutions.

Thank you,

Hari

0 Malik Barton57 over 4 years ago in reply to Hari Patel1

TI__Guru 64326 points

Hi Hardy,

Can you give some more details on the concern form the customer? The SS lines for the Type-C connector are typically AC coupled so OVP events are not as a concern.

0 Hardy Xue over 4 years ago in reply to Malik Barton57

TI__Expert 3640 points

Hi Malik,

The customer would like to add OVP function on SS lines because SS pin close to VBUS. If SBU pins have OV concern, SS lines should also have this concern.

Best regards,

Hardy

0 Malik Barton57 over 4 years ago in reply to Hardy Xue

TI__Guru 64326 points

Hi Hardy,

The SS lines are AC coupled meaning that the SS lines should be protected from Vbus short as long as AC coupling cap is rated for 20V or higher.
