DP83848Q-Q1: schematic review

Sherry Liang

Genius 10255 points

Part Number: DP83848Q-Q1

Dear team,

Could you please help review the schematic?

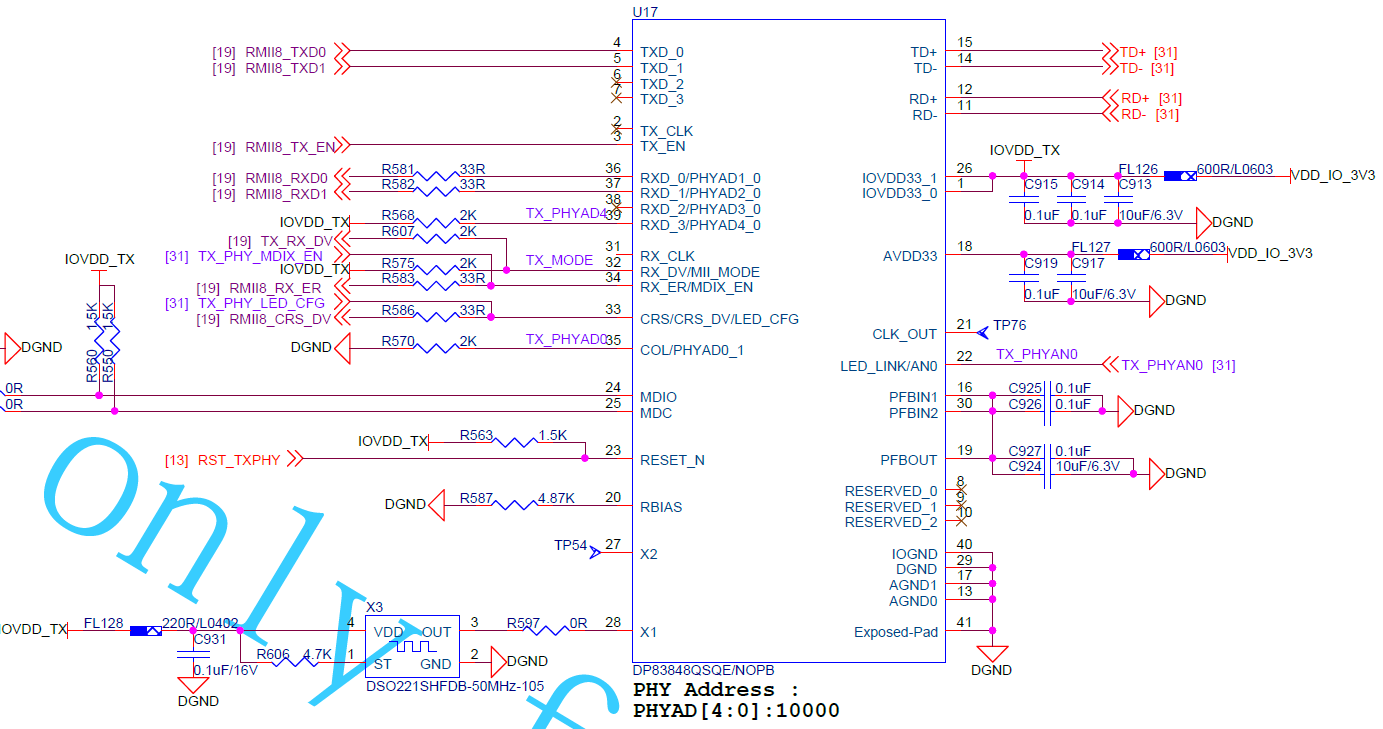

The whole picture is as below,

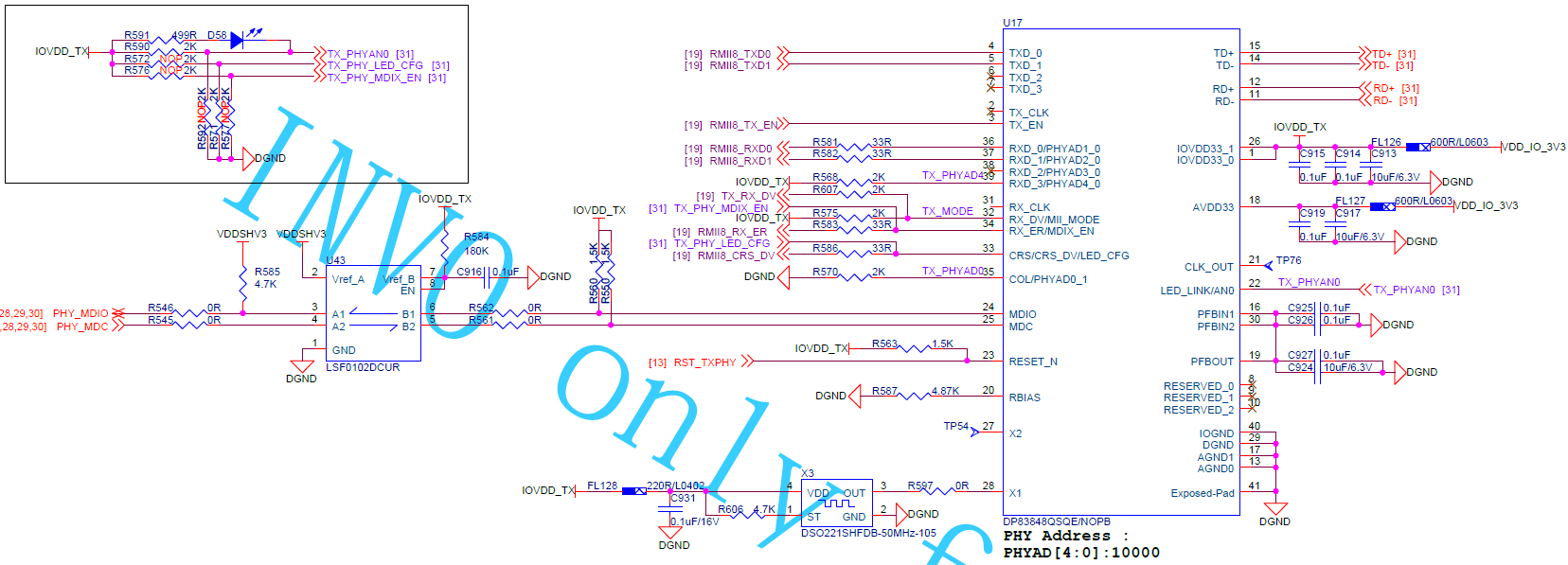

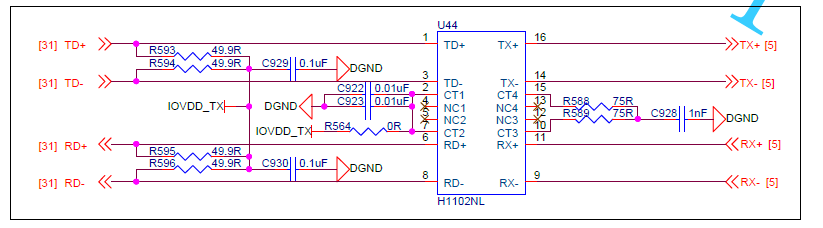

The more clear picture is as below,

Thanks & Best Regards,

Sherry

0 Adrian Kam over 5 years ago

Hi Sherry,

Overall, the schematic looks good. I just have a few comments below:

There should not be a pullup resistor on the MDC line. The pullup is only for the MDIO line.
R607 should be 33ohm like the other MII pins since it is not the strap resistor.

Regards,

Adrian Kam

0 Sherry Liang over 5 years ago in reply to Adrian Kam

Hi kam,

Thanks for your help!

Best Regards,

Sherry
