SN65DSI86: DSI-TUNER Tuner video configuration software tool

Neal Zhu

Expert 2470 points

Part Number: SN65DSI86

SN65DSI8x Video Configuration Guide and Configuration Tool Software Users Manual (Rev. B)

https://www.ti.com/tool/DSI-TUNER?keyMatch=DSI&tisearch=search-everything

Is this Application Note the latest version? But SN65DSI86 is not in the Users Manual, why?

thanks!

over 3 years ago

0 David (ASIC) Liu over 3 years ago

TI__Guru*** 139515 points

Hi,

The DSI Tuner does not support DSI86. To generate the DSI86 registers programming value, please use the spreadsheet in this e2e FAQ.

https://e2e.ti.com/support/interface/f/interface-forum/945404/faq-sn65dsi86-how-do-i-programming-the-sn65dsi86-registers

Thanks

David

0 Neal Zhu over 3 years ago in reply to David (ASIC) Liu

Expert 2470 points

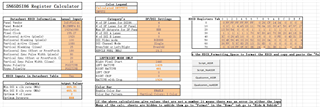

SN65DSI86_PANEL_VIDEOREGISTER_CALC.xlsm

Registers data N and FFFF are correct? What does \n &FFFF,mean,as below

as below , set according to the screen datasheet, please check it,thanks!

0 David (ASIC) Liu over 3 years ago in reply to Neal Zhu

TI__Guru*** 139515 points

Hi,

FF 0A is a special DSI command. It means stall between commands; payload is used to indicate the number of milliseconds to stall between commands. So this is not a register programming command.

FFFF means the input value is not correct.

For example HBP = Horizontal Blanking - Horizontal Front Porch - Horizontal Pulse Width

The input horizontal blanking = 100, horizontal front porch = 180, horizontal pulse width = 80, so HBP = -160. You can't have negative number.

The same concept applies to the VBP as well.

Thanks
David
