Dear Team,

Please help confirm whether TPS25810 and TPS25814 are suitable for these spec as below?

1. Provide 5V @ 3A (15W) output capability through USB typeC
2. When the external power supply is plugged in through UCB typeC, the load switch can be disconnected
3. Can support cable connection and direction detection function
4. Only through GPIO, the host's SOC can control the switch, whether there is abnormal discharge or error

If not, could you help to suggest suitable solution for customer?


Many Thanks,
Jimmy

over 4 years ago

0 Emma Hoying over 4 years ago

TI__Genius 9630 points

Hi Jimmy,

1. Yes the TPS25810 and the TPS25814 can support 5V at 3A.

2. Both devices will not provide power if a DFP/power source is connected on the CC lines.

3. Yes these parts have an orientation output, POL. Both also have the UFP/SINK output to indicate a UFP is connected.

4. The devices have an enable pin, which I believe is what you are referring to here. The TPS25814 has I2C input that allows for control through an EC or host.

Thanks,

Emma

0 Jimmy Lai over 4 years ago

TI__Expert 6845 points

Hi Emma,

We appreciated your great support!

Can these USB load switches be set with limited current resistance?

Customer want to set 5V@1A, 5V@2A, 5V@3A by limited current resistance.

Many Thanks,

Jimmy

0 Emma Hoying over 4 years ago in reply to Jimmy Lai

TI__Genius 9630 points

Hi Jimmy,

Both devices have an option between two current limits.

The TPS25814 current limit can either be set to 1.5A or 3.0A.

The TPS25810current limit can either be set to 1.7A or 3.4A.

Thanks,

Emma

0 Jimmy Lai over 4 years ago in reply to Emma Hoying

TI__Expert 6845 points

Hi Emma,

Could you help to suggest the correct part which can set 5V@1A, 5V@2A and 5V@3A?

Many Thanks,

Jimmy

0 Emma Hoying over 4 years ago in reply to Jimmy Lai

TI__Genius 9630 points

Hi Jimmy,

The TPS2647 has an adjustable current limit and can be used in conjunction with the TPS25810 or TPS25814.

Thanks,

Emma

0 Jimmy Lai over 4 years ago in reply to Emma Hoying

TI__Expert 6845 points

Hi Emma,

Dear Team,

There is good new that we DIN the TPS25810 in customer's new project.

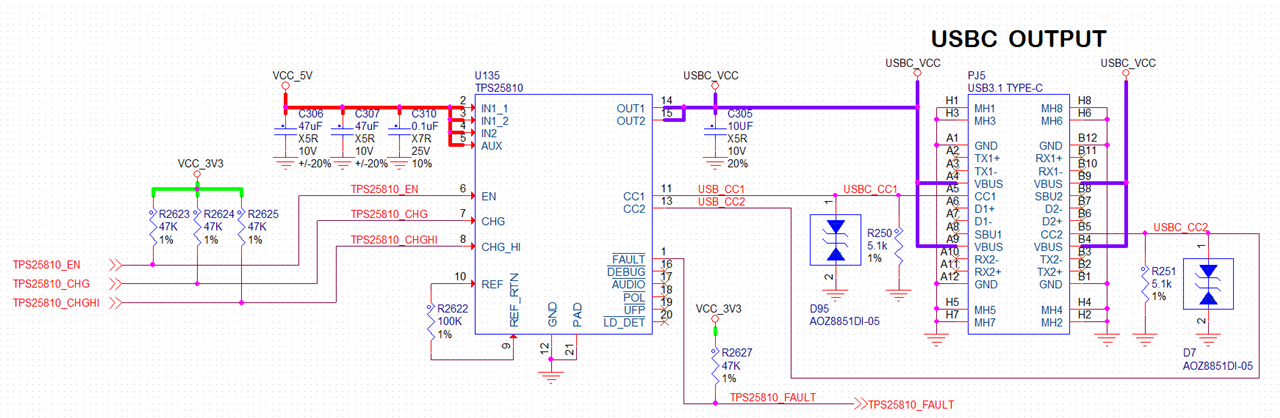

Could you help to review the schematic?

We appreciated your great support!

Many Thanks,

Jimmy

0 Hari Patel1 over 4 years ago in reply to Jimmy Lai

TI__Genius 12700 points

Hi Jimmy,

Emma is currently out of office for the week. Therefore, she can review your schematic once she is back next week.

Thank you,

Hari

0 Jimmy Lai over 4 years ago in reply to Hari Patel1

TI__Expert 6845 points

Hi Hari,

Thanks for your notice.

Could you help to review this schematic?

Because it may take too long for Emma to check the schematic next week.

We appreciated your great support!

Many Thanks

Jimmy

0 Hari Patel1 over 4 years ago in reply to Jimmy Lai

TI__Genius 12700 points

Hi Jimmy,

Yes I can see if I'm able to review it later this week and provide some feedback.

Thank you,

Hari

0 Hari Patel1 over 4 years ago in reply to Hari Patel1

TI__Genius 12700 points

Hi Jimmy,

From the datasheet, I think you may need an extra 47uF cap on the In1/2 connection. Other than that, it does look ok to me but I would still recommend waiting until Monday for Emma to provide additional feedback.

Thank you,

Hari

0 Emma Hoying over 4 years ago in reply to Hari Patel1

TI__Genius 9630 points

Hi Jimmy,

I agree with Hari's assessment. One more question: Why do you have Rd's on the CC lines?

Thanks,

Emma

0 Jimmy Lai over 4 years ago in reply to Emma Hoying

TI__Expert 6845 points

Hi Emma,

Just to reserve, the resistors on CC lines are DNI.

Thanks a lot!

BR,

Jimmy

0 Emma Hoying over 4 years ago in reply to Jimmy Lai

TI__Genius 9630 points

Okay then everything else looks good!

Thanks,

Emma
