DS90UB947-Q1: single lane mode

Ivy Jin

Part Number: DS90UB947-Q1

Hi team，

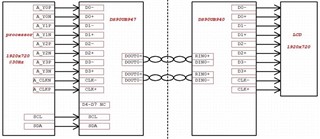

My customer uses 947 and it works in the single lane mode, transmitting signals only via D0-D3, D4-D7 are not used. So in this case, how should the pins of D4-D7 be set, suspended, pulled up, or connect to GND?

Thanks in advance!

Regards,

Ivy

over 4 years ago

+1 Hamzeh Jaradat over 4 years ago

TI__Guru** 108400 points

Hello Ivy,

unused Inputs can be left as NC, or you can terminate each pair with a 100ohm differential termination.

0 Ivy Jin over 4 years ago in reply to Hamzeh Jaradat

TI__Expert 4625 points

Hi Hamzeh,

Thanks for your kindly reply and support.

I will feedback to my customer.

Appreciate your help!

Regards,

Ivy
