SN74LVC2T45: Device Marking

Denny Huang

Expert 7170 points

Part Number: SN74LVC2T45

Dear team

The customer would like to check the number arrangement of device marking.

Form datasheet page 20. The device marking of SN74LVC2T45DCUR is CT2X.

1. From top of package, the number arrangement of device marking is Q3,Q1,Q2,Q4?

2. Q3=C,Q1=T,Q2=2,Q4=Z, Is device marking CT2Z as below picture?

Many thanks

Denny

over 4 years ago

0 Clemens Ladisch over 4 years ago

Guru 317280 points

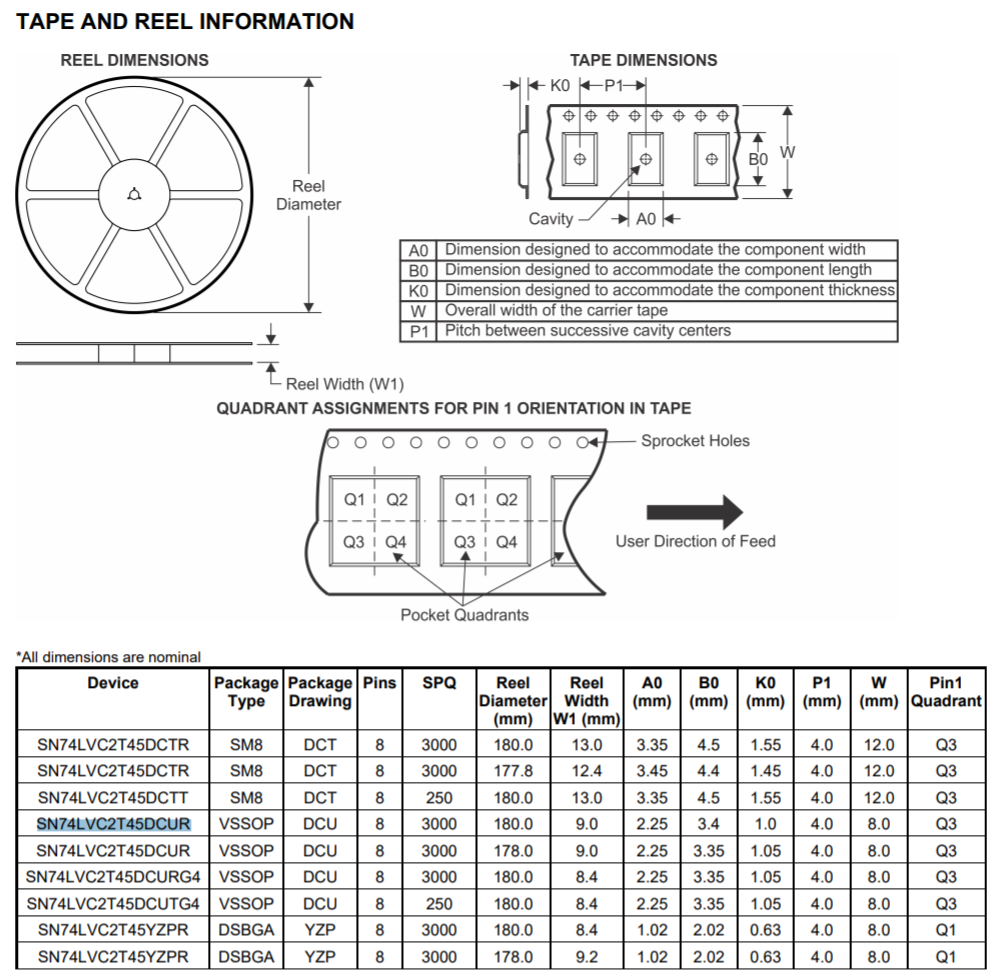

The quadrant information applies to the orientation in the tape. But your photo does not show a device in the tape. Forget about quadrants.

The marking is printed so that it is readable in the usual way (lines top to bottom, letters left to right) when pin 1 is a the bottom left.

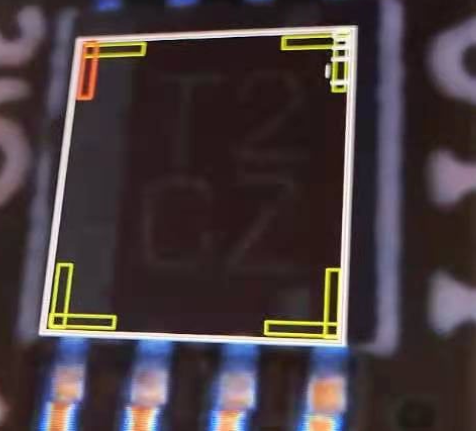

(Page 30 of the datasheet shows the pin 1 index area. In the photo, the white bar is at the left, so pin 1 is a the bottom left.)

The marking of this device is T2 CZ.

0 Denny Huang over 4 years ago in reply to Clemens Ladisch

TI__Expert 7170 points

Hi Ladisch

Thanks your reply.

1. In the photo. So the device is not SN74LVC2T45DCUR?

Many thanks

Denny

+1 Clemens Ladisch over 4 years ago in reply to Denny Huang

Guru 317280 points

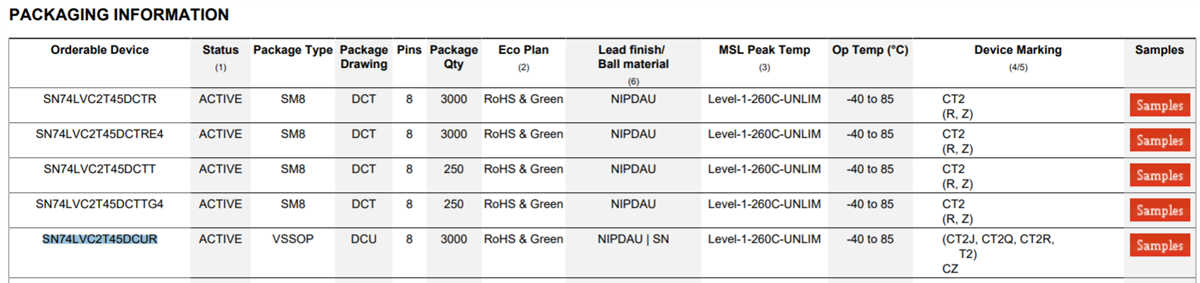

According to the entry in the packaging information table shown above, T2 CZ is a valid device marking for the SN74LVC2T45DCUR.

0 Denny Huang over 4 years ago in reply to Clemens Ladisch

TI__Expert 7170 points

Hi Ladisch

I appreciate your grate support.

Many thanks

Denny
