SN74LVC1G97-Q1: Thermal data

Denny Huang

Expert 7170 points

Part Number: SN74LVC1G97-Q1

Dear team

Could you help to provide the thermal data of Jb and Jc?

Many thanks

Denny

over 2 years ago

0 Albert Xu1 over 2 years ago

TI__Mastermind 20545 points

Hi Denny,

I just sent in two thermal requests for each package. The turn around time will be about 2 weeks. I will respond back to this thread when I receive it.

0 Albert Xu1 over 2 years ago

TI__Mastermind 20545 points

Hi Denny,

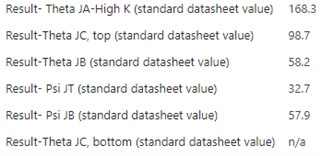

Above are the thermal results for the DCK package. The temperatures are in degrees C.

0 Albert Xu1 over 2 years ago in reply to Albert Xu1

TI__Mastermind 20545 points

These are results for the DBV package:
