TXU0104: TINA Simulation Model

Mohd Syukri Mohd Omar

Prodigy 110 points

Part Number: TXU0104

Hi,

I would like to use TXU0104 device.

Could you advice if I could have the TINA simulation model?

Thanks.

Best regards,

Syukri

over 3 years ago

0 Michael J Schultis over 3 years ago

TI__Mastermind 24985 points

Hello Syukri,

Please note that the team is out on US holiday for Thanksgiving, however we should be able to support this request when we return from break.

I will assign the appropriate owner to support when they return. Thank you for your patience.

Best,
Michael

0 Karan Kotadia over 3 years ago in reply to Michael J Schultis

TI__Genius 16735 points

Hi Syukri,

We do not have an accurate TINA model to simulate the floating supply use case available for the TXU0104. If you do not require this application, I can create the SPICE model for you within a couple of weeks.

I will recommend you use the IBIS model available on the product folder if possible.

Regards,

Karan

0 Mohd Syukri Mohd Omar over 3 years ago in reply to Karan Kotadia

Prodigy 110 points

Hi Karan,

Thanks for your reply.

Really appreciate if I could get the SPICE model.

Regards,

Syukri

0 Karan Kotadia over 3 years ago in reply to Mohd Syukri Mohd Omar

TI__Genius 16735 points

Hi Syukri,

Please allow me two weeks. I will put this ticket on pause till then.

Regards,

Karan

0 Mohd Syukri Mohd Omar over 3 years ago in reply to Karan Kotadia

Prodigy 110 points

Hi Karan,

Ok, sure .

Thanks.

+1 Karan Kotadia over 3 years ago in reply to Karan Kotadia

TI__Genius 16735 points

Hi Mohd,

Please see the attached SPICE Model. Let me know if you face any issues using the model.

OE is in reference to VccA in the model and can be changed to VccB if required by editing one line item.

TXU0104_BehavioralModel.lib

TXU0104_BehavioralModel.CIR

Regards,

Karan

0 Mohd Syukri Mohd Omar over 3 years ago in reply to Karan Kotadia

Prodigy 110 points

Hi Karan,

That's perfect!

Thanks for the SPICE model.

I could use it.

Best regards,

Syukri

0 Ahmad Syahmi Mohd Zain over 3 years ago in reply to Karan Kotadia

Prodigy 20 points

Hi,

May I know if you got IBIS model for this product? Can I request for it?

Is it same as SPICE model you provided?

Regards,

Syahmi

0 Mohd Syukri Mohd Omar over 3 years ago in reply to Ahmad Syahmi Mohd Zain

Prodigy 110 points

Hi Syahmi,

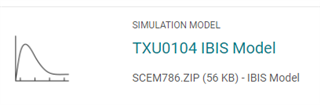

I think TXU0104 IBIS model can be found in below link under Design & Development.

https://www.ti.com/product/TXU0104#design-tools-simulation

Best regards,

Syukri

0 Ahmad Syahmi Mohd Zain over 3 years ago in reply to Mohd Syukri Mohd Omar

Prodigy 20 points

Hi Syukri,

I found it, thank you so much for your help.

Best regards,

Syahmi

0 Mohd Syukri Mohd Omar over 3 years ago in reply to Ahmad Syahmi Mohd Zain

Prodigy 110 points
