SN74ABT273: Meanings of Icc (Outputs high) and Icc (Outputs low)

Taito Takemura

Part Number: SN74ABT273

Hello Team,

My customer would like to know the meaning of “Outputs high” and “Outputs low” in column Icc in the datasheet of SN74ABT273. Is the following understanding correct?

Icc (Outputs high)

The amount of current that flows into the IC from the VCC terminal when all output terminals output Hi level.

Icc (Outputs low)

The amount of current that flows into the IC from the VCC terminal when all output terminals are outputting Low levels.

Could you please answer it? Thank you for your help.

over 3 years ago

0 Clemens Ladisch over 3 years ago

Guru 317060 points

This is not correct. I_CC is the current that flows into V_CC and out of GND. I_CC does not include the load current (which flows into V_CC and out of the output pin, or into the output pin and out of GND).

0 Taito Takemura over 3 years ago in reply to Clemens Ladisch

TI__Expert 3220 points

Thank you, Ladisch.

I understood Icc doesn't include the load current.

Could you please tell me what circumstances "Outputs high" and "Outputs low" in column Icc represent?

Thank you for your help.

+1 Clemens Ladisch over 3 years ago in reply to Taito Takemura

Guru 317060 points

The state of all eight Q outputs is high or low.

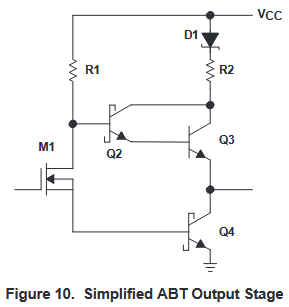

The additional current in the low state is the base current of Q4; in the high state, no current flows from V_CC to GND:
