TXS0102: TXS0102DCUR

Ted Hung

Part Number: TXS0102

Hi ,

How to confirm which it as PIN1 when it is generally unrecognizable?

tks~

(TXS0102DCUR)

0 Clemens Ladisch over 3 years ago

Guru 316780 points

As a rule of thumb, when the text is upright, pin 1 is at the bottom left.

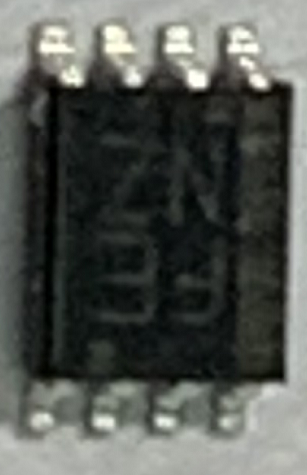

The official pin 1 marker is the white bar at the left side (at the right in the above picture).

0 Ted Hung over 3 years ago in reply to Clemens Ladisch

Got it, thanks for your replied.
