SN74LVC1T45: Lead frame differences

Dorian Vazquez

Part Number: SN74LVC1T45

Hello,

We found different lead frames and bond wires in parts purchased from different assembly sites.
Can you please let us know if this will affect the form fit or function of the parts?
Parts were purchased from TI direct.
Please let me know if you need additional information.

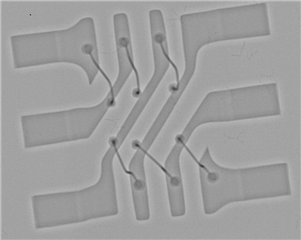

HNT:

TIPI (Parts have residual solder on leads since they were pulled from a working board):

JCE:

over 2 years ago

0 Jack Guan over 2 years ago

TI__Mastermind 40136 points

Hey Dorian,

The FIT rate as well as the performance of the device should be the same across all the the parts. Please check the below for more resources.

https://www.ti.com/quality/docs/estimator.tsp?partType=tiPartNumber&partNumber=SN74LVC1T45#resultstabl

https://www.ti.com/materialcontent/en/search?partType=tiPartNumber&partNumber=SN74LVC1T45

Regards,

Jack

0 Dorian Vazquez over 2 years ago in reply to Jack Guan

Intellectual 270 points

Hello,

Is it normal for leadframes to be this different between these assembly sites?

I assume that since Thailand pre plates their leadframes with silver that is the reason they have no ball bonds on the lead frame?

0 Jack Guan over 2 years ago in reply to Dorian Vazquez

TI__Mastermind 40136 points

Hey Dorian,

I will double confirm this with the assembly site and let you know once I receive a response.

Regards,

Jack

+1 Jack Guan over 2 years ago in reply to Jack Guan

TI__Mastermind 40136 points

Hey Dorian,

Dorian Vazquez said:
Is it normal for leadframes to be this different between these assembly sites?

It is normal that leadframe design will be different between different assembly sites. Leadframe is considered proprietary information/ design owned by each factory.

Dorian Vazquez said:
I assume that since Thailand pre plates their leadframes with silver that is the reason they have no ball bonds on the lead frame?

No, it is not the reason. Pre Plated leadframe (PPF) can be having either ball bond or leadframe or not having Ball bond on leadframe. And also PPF is Nickel, Palladium, and Gold- not silver. When you observed ball bond on lead frame, it is consider reverse bonding which is one of wire bond technique. Different site can use different bonding technique as long as follow the right layout of MB diagram of that device.

Regards,
Jack
