SN74LVC1G17: Internal Pull-up

TI-CSC

Part Number: SN74LVC1G17

Hello E2E Experts,

Good day.

What is the internal pull-up resistance value? If this is an open-collector output as you said without internal pull-up,

then if without an external pull-up resistor and external pull-up source, then how this device output is going to remain at a high state?

Regards,

CSC

over 2 years ago

0 Emrys Maier over 2 years ago

TI__Guru* 97046 points

Hello,

The SN74LVC1G17 does not have an internal pull-up resistor, and it is not an open-collector device.

TI-CSC said:
If this is an open-collector output as you said

Can you please provide the reference where these questions are coming from? I am not familiar with any documentation that claims this device is open-collector.

0 TI-CSC over 2 years ago in reply to Emrys Maier

TI__Genius 12995 points

Hello Emrys,

Good day.

I understand. Is it an open drain?

If there is no need for an external pull-up, then how this device output is going to remain at a high state?

Regards,

CSC

0 Emrys Maier over 2 years ago in reply to TI-CSC

TI__Guru* 97046 points

Hi CSC,

No, the datasheet doesn't mention anything about open-drain.

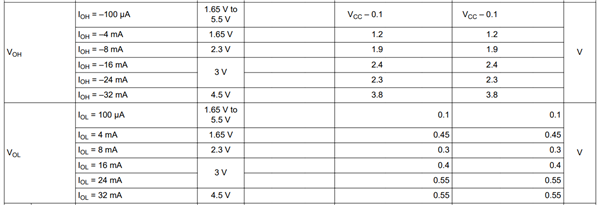

The electrical characteristics provide the output drive specifications for both the high state and the low state, indicating that the device has balanced push-pull outputs:

0 TI-CSC over 2 years ago in reply to Emrys Maier

TI__Genius 12995 points

Hello Emrys,

Good day.

From the data you provided above, not sure if it is possible to estimate the balanced push-pull output resistance of this PUSH PULL output stage is how much?

Regards,

CSC

0 Emrys Maier over 2 years ago in reply to TI-CSC

TI__Guru* 97046 points

Hi CSC,

Yes, it is possible - I believe these two FAQs should help:

[FAQ] What is the output voltage (VOH or VOL) when the output current is X or the supply voltage is Y?

[FAQ] How do I determine the output voltage (VOH, VOL) or output current (IOH, IOL) of a CMOS logic device? \
