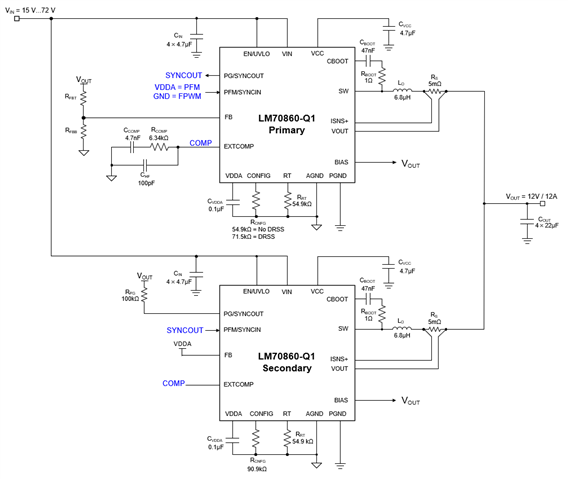

Hello, I would like to ask you something.I read the data sheet and I don't know how to connect.I'm going to use two and output one to the same line as the main one as a sub.I'm trying to make a circuit diagram so that the input is 18V-32V and the output is 12V, but I don't have a reference circuit, so it's hard to understand. Is there a reference circuit that uses two at the same time to output 12V?
Hi,
I have a few more questions, is 12 VOUT of FB pin of 1st chip and SYNCOUT pin of 2nd chip correct?

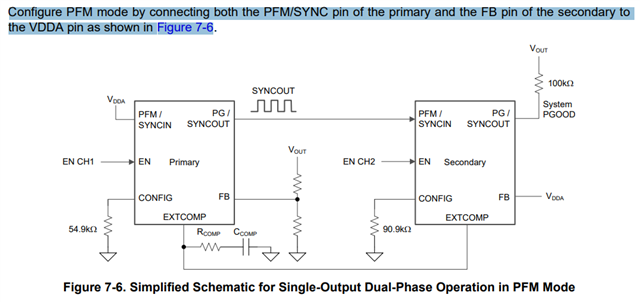

For the primary, the pins that need to be tied to VDDA, should use primary VDDA. For the secondary, the pins that need to be tied to VDDA should use the secondary's VDDA.
And is it okay to connect the bias pin to the SW vout pin of the first chip?
The outputs should be connected together, which your schematic shows but the drawing may be a little confusing to others.
Did you happen to download the quickstart calculator to confirm your design?
Ben
