SN74LVC1G126-Q1: Pspice model not working for SN74LVC1G126

ABKD

Part Number: SN74LVC1G126-Q1
Other Parts Discussed in Thread: SN74LVC1G126

Tool/software:

The pspice model is not working in TI for pspice for SN74LVC1G126.

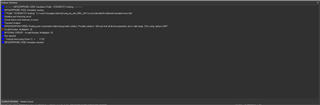

Below is the error observed in TI for pspice simulation -

Can TI share the model that will work in TI for pspice?

Regards,

Abhishek D.

0 Albert Xu1 11 months ago

Hi Abishek,

Can you try this model?

I believe I was able to get rid of the problem areas.

0 ABKD 10 months ago in reply to Albert Xu1

Hello Albert,

Still the above error is observed as per your model.

0 Albert Xu1 10 months ago in reply to ABKD

Hi,

I am not getting the same error. Let me talk to my team to see if they know what is wrong.

Logic forum
