SN74HCS72: PSpice Model is not functional.

Andrew Kruse

Part Number: SN74HCS72

Tool/software:

Working with SN74HCS72.

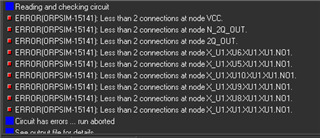

I am able to generate a netlist for this part using the following model template, and properties. But it appears that there are floating net errors when attempting to perform the simulation in PSpice.

The model in question can be found here.

8 months ago

0 Andrew Kruse 8 months ago

Prodigy 10 points

0 Malcolm Lyn 8 months ago in reply to Andrew Kruse

TI__Mastermind 26440 points

Hi Andrew,

There's usually a little bit of extra legwork involved when getting these PSPICE models to work. Could you try the steps I recommend in the post below and see if that fixes it:

(3) CD4081B: Error message in Pspice for TI - ERROR(ORPSIM-15108): subcircuit undefined - Logic forum - Logic - TI E2E support forums

Best,

Malcolm
