SN74HCS10-Q1: Logic Gates with enable feature

reshma b

Part Number: SN74HCS10-Q1
Other Parts Discussed in Thread: SN74LVC1G125, SN74LVC1G97, SN74AC3G99, SN74AC3G99-Q1

Tool/software:

Hi,

1)I need a 3channel NAND gate with enable pin feature and SOIC-14 package.Please help me to chose one.

2)Do TI have logic gates with both AND and NAND in same IC.If yes,could you please suggest one (SOIC-14 package preffered).

Regards,

Reshma

6 months ago

0 Clemens Ladisch 6 months ago

Guru 316860 points

1. I am not aware of any such device. Add a 3-state buffer (e.g., SN74LVC1G125) after the NAND gate.

2. I am not aware of any such device.

What is the actual problem you're trying to solve?

0 Malcolm Lyn 6 months ago

TI__Mastermind 26140 points

Hi Reshma,

1. We don't have any device that meets these exact requirements.

2. You could use one of our configurable logic gates, configuring one channel as an AND and one channel as a NAND: SN74AC3G99 Triple Ultra-Configurable Multiple-Function Gates With 3-State Outputs And Schmitt-Trigger Inputs datasheet (Rev. A)

Best,

Malcolm

0 reshma b 6 months ago in reply to Clemens Ladisch

Prodigy 120 points

Could you please suggest an inverting buffer IC having this enable pin feature.

0 Malcolm Lyn 6 months ago in reply to reshma b

TI__Mastermind 26140 points

Hi Reshma,

I suggest this IC: Single Buffer/Driver With 3-State Output, SN74LVC1G240 datasheet (Rev. L)

Best,

Malcolm

0 reshma b 6 months ago in reply to Malcolm Lyn

Prodigy 120 points

Thank you Lyn.This seems useful.

But I am confused how these combinational gates are build using this single IC.I would like to build a circuit like the below figure using this IC.

I have 2 inputs and require a NAND gate and output of which will be used by 2 AND gates.

0 reshma b 6 months ago in reply to Malcolm Lyn

Prodigy 120 points

Thank you Lyn.Is a 2 channel inverting buffer available ?

0 Malcolm Lyn 6 months ago in reply to reshma b

TI__Mastermind 26140 points

Hi Reshma,

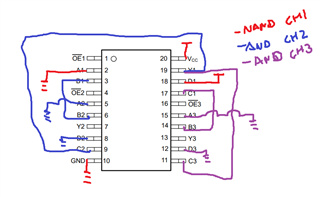

You can accomplish all three gates with this one device. Each channel can be configured to be a different function/gate. To configure a channel as a NAND or AND gate, simply connect the inputs like shown:

If you connect the pins like this, you get the gate connections in your schematic:

2 channel inverting buffer:

Dual Buffer/Driver With 3-State Outputs, SN74LVC2G240 datasheet (Rev. I)

Best,

Malcolm

0 Clemens Ladisch 6 months ago in reply to reshma b

Guru 316860 points

PPWM-1A = PWM-1A AND (NOT PWM-1B)
PPWM-1B = (NOT PWM-1A) AND PWM-1B

Each output can be implemented with a single AND gate with an inverted input, i.e., SN74LVC1G97 (see figure 6 in its datasheet).

0 reshma b 6 months ago in reply to Malcolm Lyn

Prodigy 120 points

Thank you Lyn.

This IC will solve the purpose. But do we have SOIC 14 pin package with similar functionality.

0 reshma b 6 months ago in reply to reshma b

Prodigy 120 points

Also do we have an AEC qualified part for SN74AC3G99

0 reshma b 6 months ago in reply to Clemens Ladisch

Prodigy 120 points

Hi Clemens,

Thank you for the solution. Do we have such an IC with 2 channels and SOIC-14 package? My requirement is to replace an SOIC-14 package from my current schematics and to replace it with this feature.

0 Clemens Ladisch 6 months ago in reply to reshma b

Guru 316860 points

Configurable gates need additional pins for the configuration. There is no P2P device.

SN74AC3G99-Q1

0 reshma b 6 months ago in reply to Clemens Ladisch

Prodigy 120 points

Can you please suggest a 2 channel part having features of SN74LVC1G97

0 Clemens Ladisch 6 months ago in reply to reshma b

Guru 316860 points

There is no such device with two channels.

0 reshma b 6 months ago in reply to Clemens Ladisch

Prodigy 120 points

Thank you

0 reshma b 6 months ago in reply to Clemens Ladisch

Prodigy 120 points

Hi Clemens,

One more query.Do we have NAND or AND gate with enable pin

0 Clemens Ladisch 6 months ago in reply to reshma b

Guru 316860 points

Only the '99 configurable devices.
