TXB0108: Footprint and pinout

Alberto Vella

Part Number: TXB0108

Tool/software:

Hi, I am using TXB0108DQSR for my design. I noticed that there are differences between the pinout reported in the datasheet and the symbol and footprint I found on the Texas Instruments website.

For better understanding I show you all the screenshots.

First I show you the symbol and footprint I downloaded from TI website:

And this is the Image from the datasheet:

As you can see, the pin assignment is different.
Which is the right one?

Thank you in advice.
Alberto

6 months ago

+1 Jack Guan 6 months ago

TI__Mastermind 40436 points

Hi Alberto,

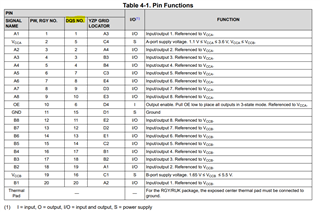

Thanks for pointing this out- it seems to be a typo on the image from the datasheet. The symbol and footprint are correct, see table 4-1 for the proper pinout:

Regards,

Jack

0 Alberto Vella 6 months ago in reply to Jack Guan

Prodigy 30 points

Thanks, Jack.
