TXS02324: Using TXS02324 with TCA9803

Markus Kammerer

Part Number: TXS02324
Other Parts Discussed in Thread: TCA9803,

Tool/software:

Hey,

I'm using the TCA9803 to buffer the I2C signal from baseband to the TXS02324.

The software department requests the HW-ID and gets a plausible answer.
However, after receiving this response, communication with the TXS02324 is no longer possible.
The HW-ID can only be queried again after a power reset.

Thanks in advance.

Best,

Markus

TXS02324

5 months ago

0 Clemens Ladisch 5 months ago

Guru 316510 points

What is the slave address you're using for the TXS?

0 Markus Kammerer 5 months ago in reply to Clemens Ladisch

Prodigy 10 points

For read commands we use 79(h), for write command we use 78(h).

The addressing works even after the first successful readout. However, if you query again, the final query will no longer be answered.

0 Clemens Ladisch 5 months ago in reply to Markus Kammerer

Guru 316510 points

As far as I can see on p. 7, the address byte is 7Ah/7Bh when the interrupt to the baseband is active.

0 Markus Kammerer 5 months ago in reply to Clemens Ladisch

Prodigy 10 points

The IRQ line is pulled to GND.

I'm just wondering how useful that is.

+1 Jack Guan 5 months ago in reply to Markus Kammerer

TI__Mastermind 39986 points

Hi Markus,

If IRQ is set to 0 then to read from the device the address is 0x79, and write to address is 0x78- this looks correct. Can we ensure the below conditions are followed?

To rule out of root of issue is signal integrity similar to previous E2E thread, it would be helpful to collect waveforms for further debugging as needed.

e2e.ti.com/.../3154251

Regards,

Jack

0 Markus Kammerer 5 months ago in reply to Jack Guan

Prodigy 10 points

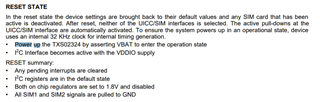

I can't get a lot of information out of the RESET STATE part, other than a power reset.

For now it's just about basic I2C communication with the chip.

SW is currently working on possible bugs.

I will be back with more information and/or waveform analysis.
