SN74AXC4T245: VOH, VOL Values at 1.8V VCCI

Abhijith TP

Part Number: SN74AXC4T245

Tool/software:

Dear Team,

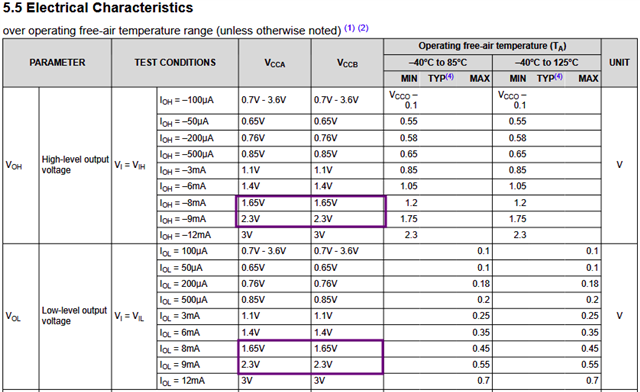

As per the datasheet of SN74AXC4T245RSVR level translator IC, the VOH and VOL values are provided for 1.65V and next voltage is 2.3V, But in our application we are providing a 1.8V at VCCI.

Could you please provide us with the VOH and VOL values for 1.8V at VCCI?

Regards,

Abhijith

2 months ago

0 Joshua Salinas 2 months ago

TI__Mastermind 25710 points

Hello Abhijith,

Please take a look at this FAQ

[FAQ] How do I determine the output voltage (VOH, VOL) or output current (IOH, IOL) of a CMOS logic device?

Regards,

Josh

+1 Clemens Ladisch 2 months ago

Guru 318050 points

The specifications are for lower supply voltages to account for tolerances; it's the worst case of a 1.8 V ± 0.15 V supply.
Use the V_OL value specified for 1.65 V. Add 0.15 V to the V_OH value.

0 Abhijith TP 2 months ago in reply to Clemens Ladisch

Prodigy 130 points

Thank you both for your swift responses and the clear guidance!
