SN74AVC2T245: Pin 1 marking ID

Quynh Nguyen

Part Number: SN74AVC2T245

Tool/software:

Hello,

Full PN: SN74AVC2T245RSWR

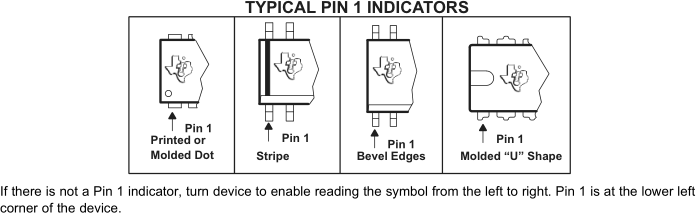

I need the top marking document to identify Pin 1 location as I am trying to understand which one is the orientation dot, and what's the other dot-pattern meanings? we have different dot-pattern on 2 projects, and one part has a mysterious short

Thanks,

Quynh

2 months ago

0 Clemens Ladisch 2 months ago

Guru 318050 points

The short bars above and below the text are a binary date code.

0 Quynh Nguyen 2 months ago in reply to Clemens Ladisch

Prodigy 235 points

TI Top Markings.docx

The physical parts actually have 4-dots in total (see attached doc) and located in different locations. We need to confirm if locations of dots are matter??

Thanks,

Quynh

0 Joshua Salinas 2 months ago in reply to Quynh Nguyen

TI__Mastermind 25790 points

Hello Quynh,

For RSW packages, there will be a notch on one of the pins that indicate pin 1 orientation.

Regards,

Josh

+1 Quynh Nguyen 2 months ago in reply to Joshua Salinas

Prodigy 235 points

Thanks Josh. You can close this ticket.

have a great day,

Quynh
