Thanks for a quick turn around, I have 9 channels to level translate. Also does AVC family satisfy the below mentioned condition too?

Anjana Jahagirdar said:

- The IOs of level shifter should support pull-up/pull-down resisters of 20kohm and higher. Since the TLA probe has 20kohm internal pull-down.

Is there a way to conclude the output rise/fall times will be less than 3ns through datasheet?

Hi Joshua,

Thank you for the clarification.

Based on the link I did calculate the rise/fall time, the calculations are as follows:( for VCC = 3V)

1. AVC family : output rise/fall time = ~ 5.8ns
2. AXC family: output rise/fall time = ~ 5.8ns
3. LVC family: output rise/fall time = ~ 2.5ns

Based on your suggestion do I still go for AVC family ?
Your help will be greatly appreciated, Thanks in advance

Hi Joshua,

Thank you so much for your help, greatly appreciate your quick replies.

Hi Joshua,

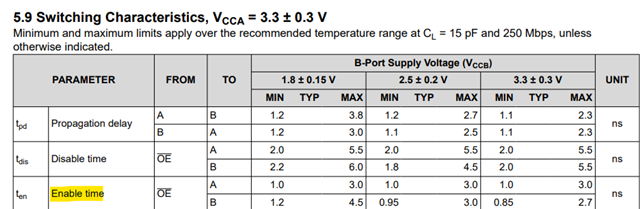

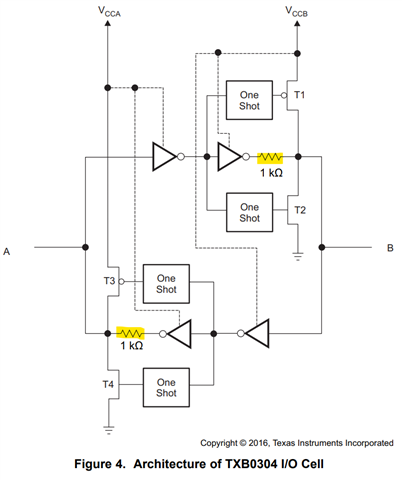

For TXB0304 bidirectional level shifter the output rise/fall time are given 2.95 and 3.1ns (15pf load) , but if we calculate based the link you shared [FAQ] What is the output transition rate for a logic device?, it will be 300ns and 540ns (15pf load), am I doing something wrong here?

Based on these results how can I be sure with LVC family rise/fall time calculations.

Also I can still use TXV0108 right, it supports 10MHz right?

HI Joshua,

Thank you so much for the help, got all my answers.

Hi Joshua,

The TXV0108, supports pull-up/pull-down resisters of 20kohm and higher?

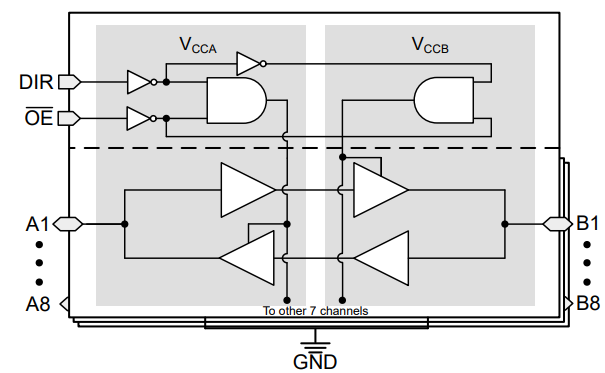

Also we are using it as bidirectional level shifter, so we will be dynamically making DIR pin high/low, what is the propagation delay from DIR to OE, DIR to A port?

Thanks

Hi Joshua,

Thank you so much your help, this has answered all my questions.
