SN74AUC1G125YZPR – About Maximum frequency

Hide

Guru 21045 points

Other Parts Discussed in Thread: SN74AUC1G125

Hi Team,

I know that “maximum frequency = 250MHz” is mentioned in the product folder of SN74AUC1G125.

http://www.ti.com/product/SN74AUC1G125/description

However, this value is not stated in the datasheet.

So, we would like to confirm whether this value is correct or not.

I found this E2E thread.

http://e2e.ti.com/support/logic/f/151/p/53172/189055#189055

According to this thread, I understood that all AUC families(include SN74AUC1G125) are “maximum frequency = 250MHz”.

Is my understanding incorrect?

Please let me know if you have any advice.

Regards,

Kanemaru

over 11 years ago

0 James Lockridge19 over 11 years ago

TI__Genius 14487 points

Kanemaru,
Your understanding is correct. I would like to add that for logic parts, the maximum frequency is also dependent on the load capacitance which your part is driving. Larger load capacitances will lower the maximum frequency you can achieve with your part.
James

0 Hide over 11 years ago in reply to James Lockridge19

Guru 21045 points

Hi James-san,

Thank you for the information!

Could you please let us know the load capacitance when “maximum frequency=250MHz"?

And, please send it to us if you have “Load capacitance vs Maximum frequency graph”.

Regards,

Kanemaru

0 James Lockridge19 over 11 years ago in reply to Hide

TI__Genius 14487 points

Kanemaru-san,

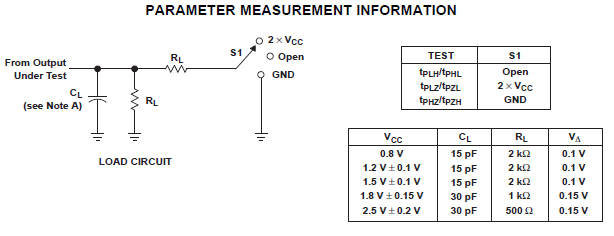

The test setup for the part, along with the load conditions, can be found in the Parameter Measurement section of the datasheet. It looks like the largest capacitance is 30 pF (see image below).

As for a graph of load capacitance vs. frequency, unfortunately we do not collect that data.

0 Hide over 11 years ago in reply to James Lockridge19

Guru 21045 points

Hi James-san,

Thank you for your kind support!

I understood. thank you very much.

Regards,

Kanemaru
