SN74AHCT32 Datasheet Missing VFQFN EPAD Connection

ErnestHanks_55

Electrically what should the EPAD be connected to? (I assume ground, but this information NEEDS to be in the datasheet before it can be designed in).

over 10 years ago

0 ShreyasRao over 10 years ago

TI__Guru 62180 points

Hi ErnestHanks ,

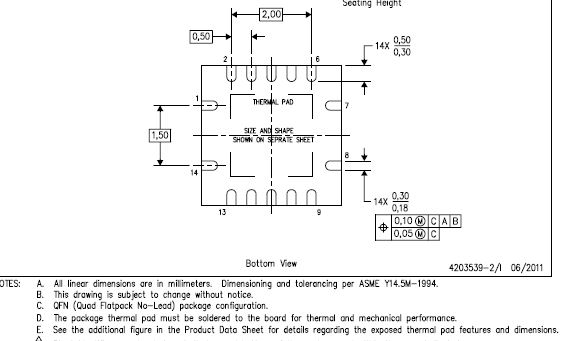

You need to solder the exposed thermal pad to Ground as heat sink for thermal performance. you can find it at the end of the datasheet in the mechanical drawings .
