Logic IC solution

Nat Wong

Genius 3070 points

Dear Sirs

Does TI provide the following IC?

one input, one output,

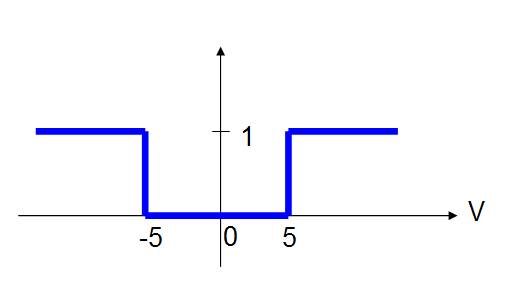

When input>5V or <-5V =>output=1

When input -5V~5V =>output=0

BRS

Nat

over 9 years ago

0 Ron Michallick over 9 years ago

TI__Guru**** 164606 points

Nat,

A dual "window" comparator is the usual solution.
Is there a speed requirement?
What logic output level is needed?
Is there an accuracy requirement for +/-5V thresholds?
Is hysteresis needed and how much?
