Hello,

I’m looking at using the SN74LVC1G139 to drive some LEDs directly, but I’m not confident on what the MAX output voltage would be for VOL (Max voltage at the pin when output is driven low).

I’m looking to sink about 5mA at 3.3V. What is a realistic VOL MAX voltage under those conditions?

Thank you

over 8 years ago

0 ShreyasRao over 8 years ago

TI__Guru 58020 points

Hi Jamaal ,

I am unsure about the realistic Vol max at the particular spec .I would estimate that the typical Vol will be about 0.1V at 3.3V with 5mA .

0 Jamaal_Charles over 8 years ago in reply to ShreyasRao

Genius 3245 points

Thank you,

Sorry to do this to you, but what would typical be at 10mA? We are thinking we may need to parallel LED's off each output.

0 ShreyasRao over 8 years ago in reply to Jamaal_Charles

TI__Guru 58020 points

Jamaal ,typical Vol would be about 0.15V .

0 Clemens Ladisch over 8 years ago

Guru 275490 points

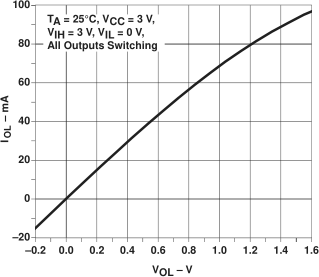

Figure 15 of SCBA011: LVC Characterization Information shows the typical output drive:

For the max values, you have to interpolate from the datasheet's max values for 16 or 24 mA (for these currents, the output impedance is approximately constant).
