input current for 74lvc1g14 and 74lvc1g34

Madhusudana Reddy

Prodigy 40 points

Other Parts Discussed in Thread: SN74LVC1G14, SN74LVC1G34, TLV3502

Dear team,

Please share the input current for the 74lvc1g14 and 74lvc1g34 IC's, I have not found in datasheet.

I am looking for IIH and IIL data for these IC's.

Thanks

Madhu

over 9 years ago

0 Daniel Hartung over 9 years ago

TI__Mastermind 28645 points

Hey Madhusudana,

The data sheet lists IIH and IIL as one data point called II and it lists a positive and negative maximum. It can be found in table 6.4 of lvc1g14 and table 7.5 of lvc1g34

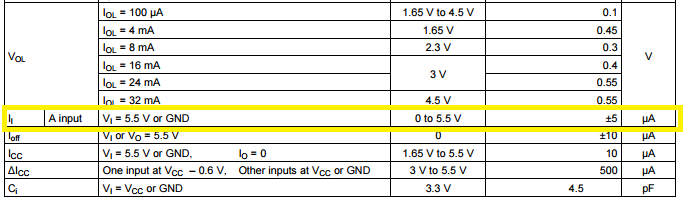

sn74lvc1g14:

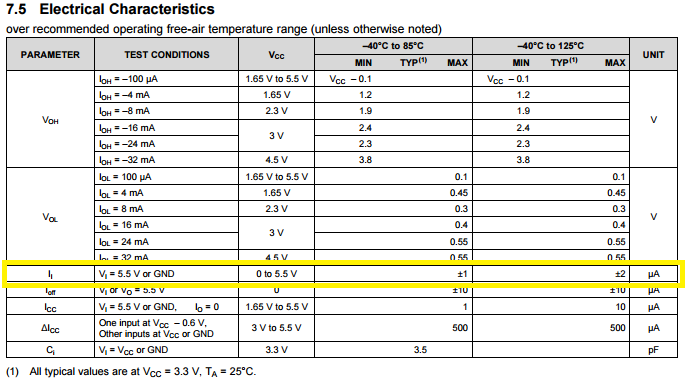

sn74lvc1g34:

Thanks,

Daniel

0 Madhusudana Reddy over 9 years ago in reply to Daniel Hartung

Prodigy 40 points

Hi Daniel,

thanks for your reply,

But i was confused whether its is input current or leakage current, becuase some of the datasheet Il is mentioned as input leakage current.

we have checked the same datasheet part number for NXP(74LVC1G34) they have mentioned Il is leakge current.

could you please confirm.

Thanks

Madhusudana reddy

0 Clemens Ladisch over 9 years ago in reply to Madhusudana Reddy

Guru 316940 points

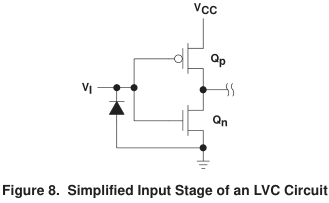

These are CMOS devices. The inputs of CMOS devices are MOSFET gates, so in theory, current flows only during switching, to charge the gate. The input impedance is nearly infinite, and in the stable state, the only input current is the leakage current.

0 Madhusudana Reddy over 9 years ago in reply to Clemens Ladisch

Prodigy 40 points

Thanks Clemens,Thanks for your reply.
We are using TLV3502 opamp also in our circuit . For this shall we consider input max current to this opamp as input bias current provided in the datasheet ? Please confirm.
ThanksMadhu

0 Clemens Ladisch over 9 years ago in reply to Madhusudana Reddy

Guru 316940 points

Yes.

Logic

Logic forum

input current for 74lvc1g14 and 74lvc1g34
