What's the output structure of SN74LV1T34?

Joe Chen

Prodigy 40 points

Other Parts Discussed in Thread: SN74LV1T34

Dear expert,

My client would like to know the output sturcture of SN74LV1T34, would you please help to let us know?

Thanks.

over 8 years ago

0 Clemens Ladisch over 8 years ago

Guru 316920 points

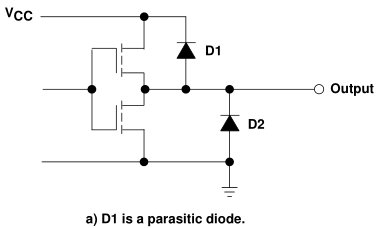

A simplified output structure of devices in the LV family is shown in figure 7 of Understanding Advanced Bus-Interface Products (SCAA029), but it omits the protection diodes. Anyway, the structure is the same as for HCMOS, as shown in figure 14 of SCLA007:

0 ShreyasRao over 8 years ago in reply to Clemens Ladisch

TI__Guru 62160 points

Thanks for your response, Clemens. I appreciate it.

0 Joe Chen over 8 years ago in reply to Clemens Ladisch

Prodigy 40 points

Hi Clemens,
Thanks for your response. I've replied it to my client.
