level value change small after through TXS0108E。

user4789050

Other Parts Discussed in Thread: TXS0108E

Hi，all。 i used TXS0108E to Translate my clock(25MHz) from A to B(clock input from pin2 and output from pin10). Vcca=3.3v,Vccb=3.3v clock level=3.3v.

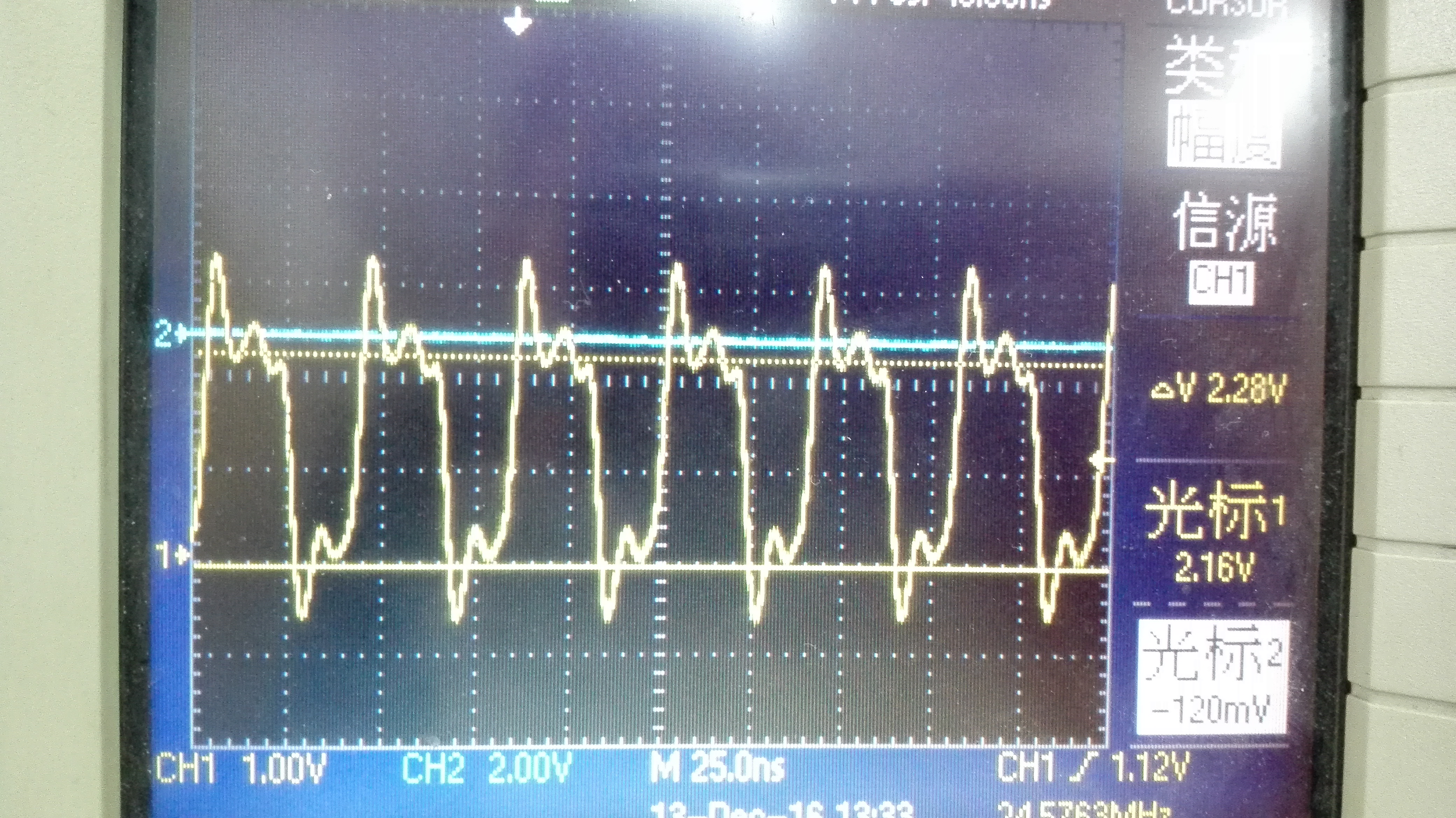

wave on pin2 as follow：

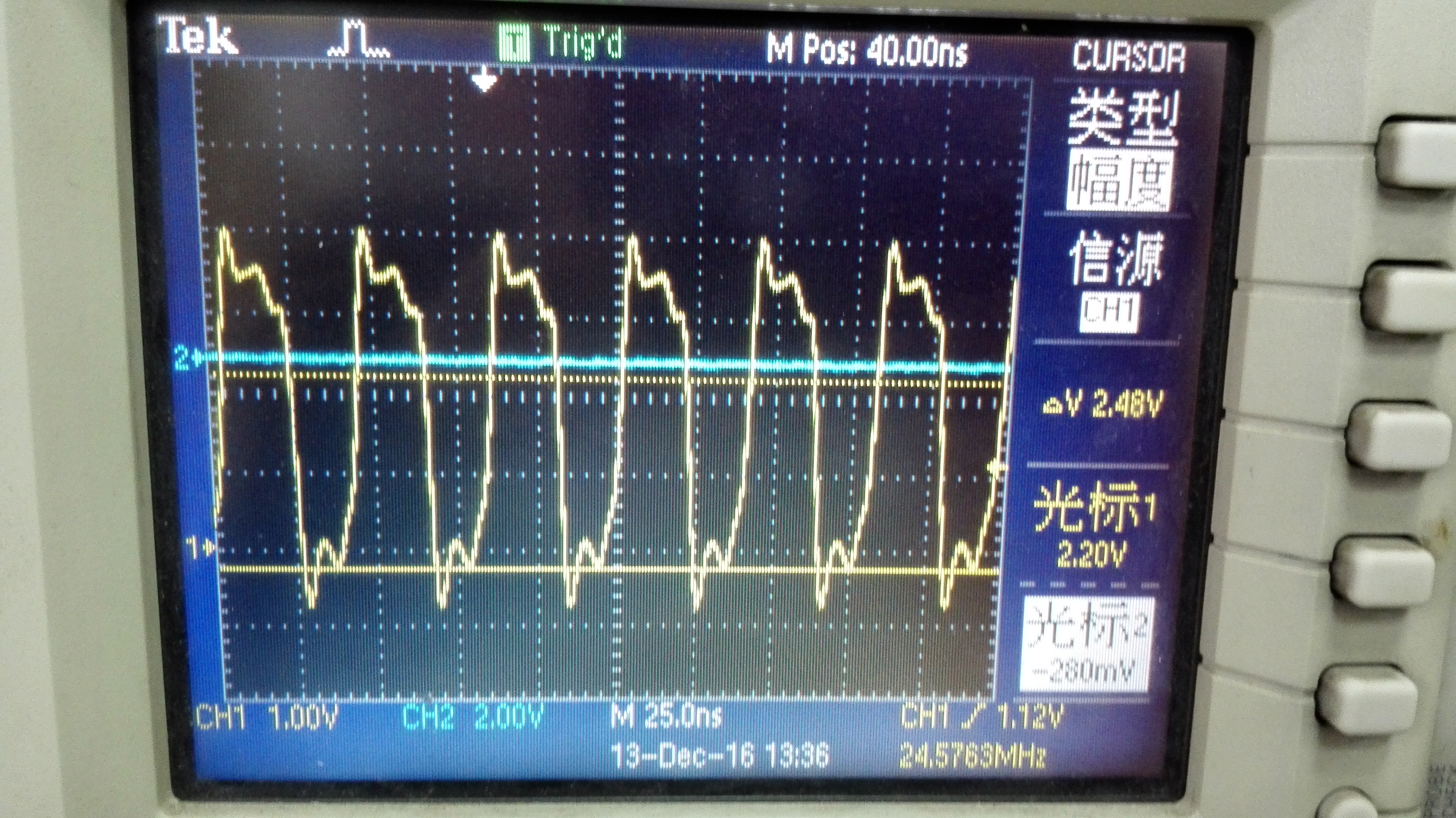

wave on pin10：

Can someone give me some advise? Thanks!

over 8 years ago

0 aozer over 8 years ago

TI__Mastermind 30575 points

Hello,

Can you provide a schematic?

0 user4789050 over 8 years ago in reply to aozer

Prodigy 110 points

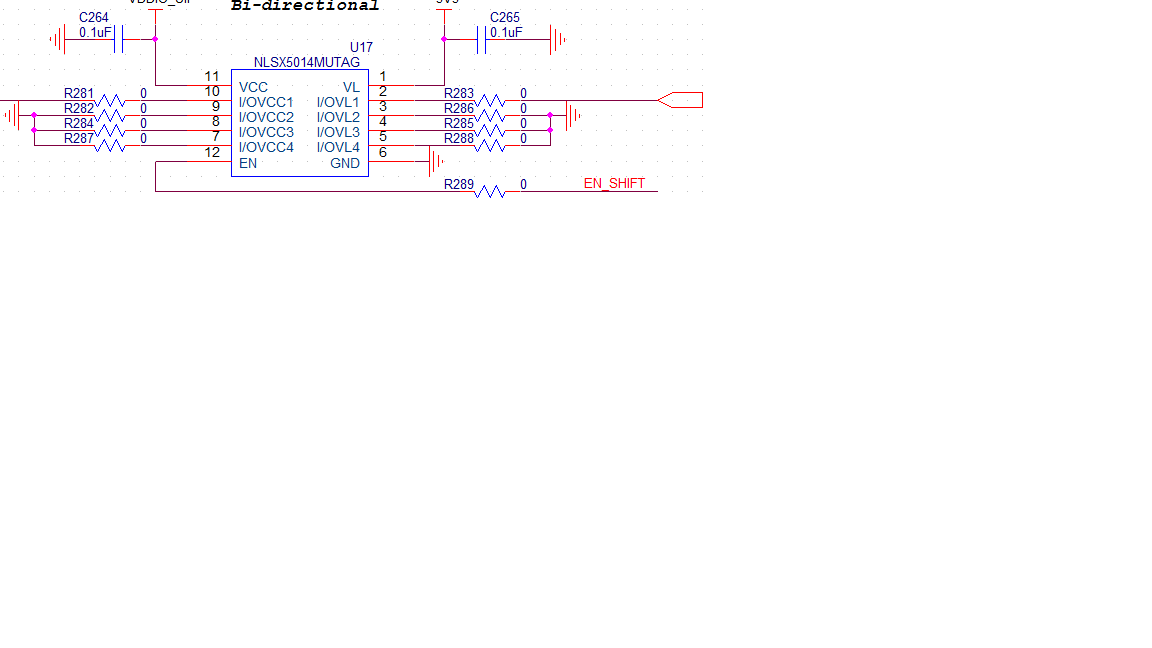

Thanks for your reply！my schematic as follow：

0 aozer over 8 years ago in reply to user4789050

TI__Mastermind 30575 points

Hi,

The schematic looks fine. Can you clarify a few things for me?

In your post you say that VCCA and VCCB are both 3.3V but the tag for you post has '1.8V to 3.3V translation'. Are you translating from 1.8V to 3.3V or are both supplies at 3.3V?

Is the issue that you are expecting 3.3V at the output but are only seeing around 2.3V?

0 user4789050 over 8 years ago in reply to aozer

Prodigy 110 points

Thanks for your reply first!
----"Are you translating from 1.8V to 3.3V or are both supplies at 3.3V?"
my application is both supplies at 3.3v.
----"Is the issue that you are expecting 3.3V at the output but are only seeing around 2.3V?"
Yes, it is!
Thanks again!
