I need IC to switch the datas

venkates waran

Friends...In my project I'm using an DIP switch to control the data and clock from eeprom to pic...

I need an electronic driver like ULN2803 for performing this switch operation.

my requirement is I need 8 pins and 8 output.When the power supply of the ic or switching pin is made high or low means it have to switch the data and clock also...

Is their any IC available related to my requirement..?

over 8 years ago

0 Clemens Ladisch over 8 years ago

Guru 316940 points

What kind of switch? Single or double throw? What is the actual problem you're trying to solve?

0 venkates waran over 8 years ago in reply to Clemens Ladisch

Prodigy 20 points

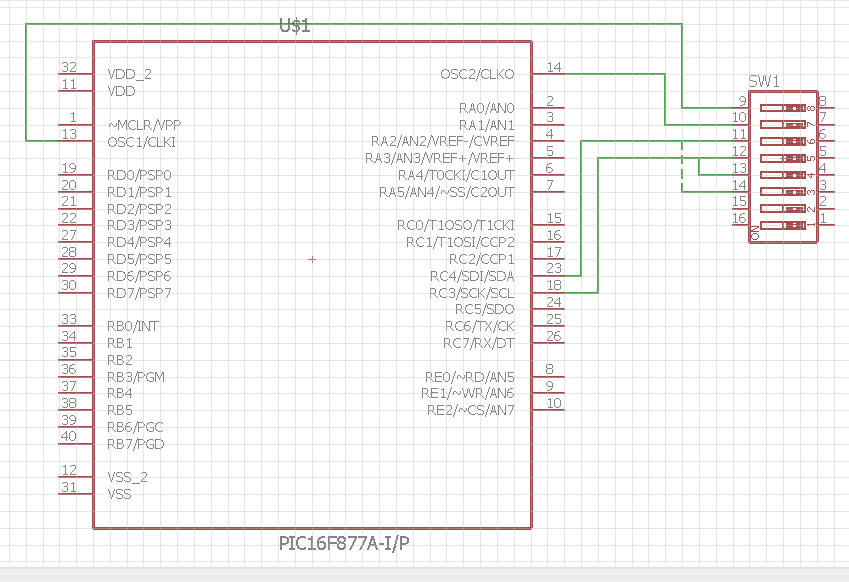

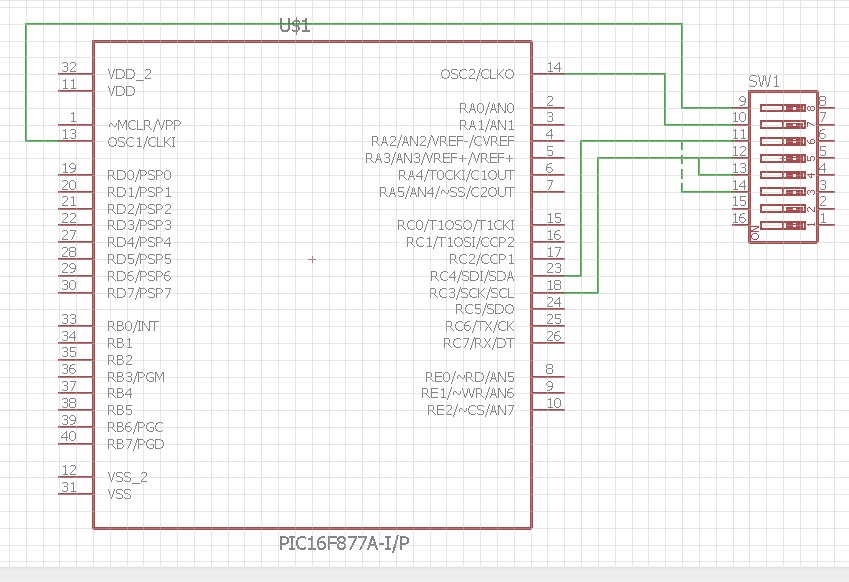

In this circuit i connected the SDA,SCL and OSC pins to DIP switch to control it.My requirement is a electronic switch like DIP switch to control this lines...

0 Clemens Ladisch over 8 years ago in reply to venkates waran

Guru 316940 points

That DIP switch is not connected to anything on the right side, and it doesn't use eight lines, and you have not told us in which situation what signals should be connected.

0 Ed Walker over 8 years ago in reply to Clemens Ladisch

Prodigy 5 points

Have you considered an Analog Switch?

A DIP switch is usually SPST, single pole single throw.

TI has many Analog Switches that serve to replace DIP switches.

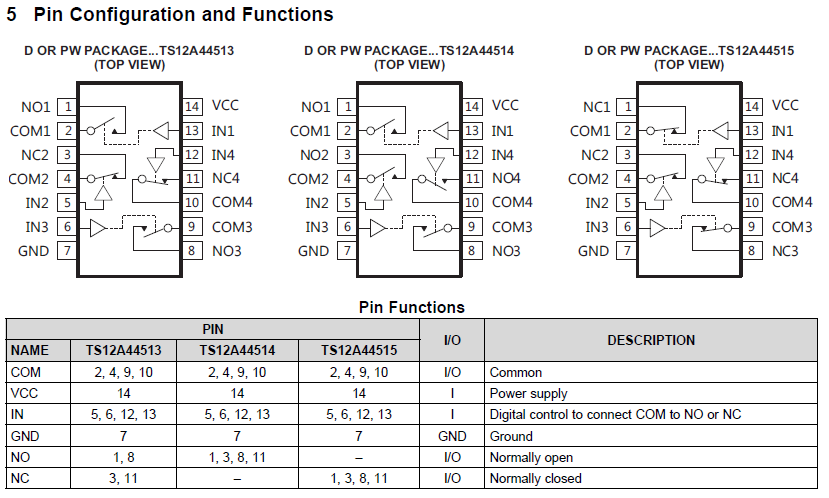

This one is SPST, 4 switches per package.
