TXB0108: Open Drain Question

Angela Rodriguez

Prodigy 80 points

Part Number: TXB0108

Hello TI People,

I would like to use this part for I2C Signals, will this work for that?

Angela

over 8 years ago

0 Nicholas Mariani9 over 8 years ago

TI__Intellectual 2100 points

Hey Angela,

Unfortunately, the TXB family of parts does not work with open drain devices. I suggest that if you'd like to use open drain signals, such as I2C, then you use the TXS or LSF family of parts. The TXS and TXB devices are quite similar so it shouldn't be a huge change for you luckily.

If this answered your questions then please verify the answer below by hitting the green verification button! If you have additional questions please feel free to send them my way.

Best Regards,
Nick

0 Angela Rodriguez over 8 years ago in reply to Nicholas Mariani9

Prodigy 80 points

Okay, thanks! Was this mentioned in the datasheet somewhere and I just missed it?

0 Nicholas Mariani9 over 8 years ago in reply to Angela Rodriguez

TI__Intellectual 2100 points

Hey Angela,

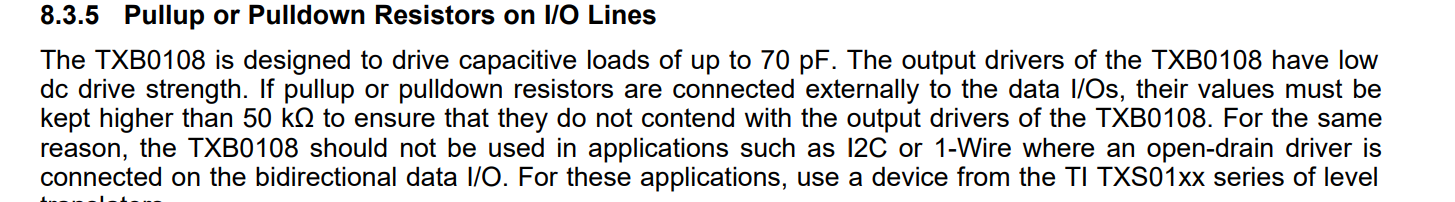

Yes, it is mentioned in section 8.3.5, it can be easy to miss; you can always ctrl f "I2C to find it too:

Hope this helps,

Nick
