TXB0102: only using one of the two Channels, how could I set the unused channel

April Jiang

Part Number: TXB0102

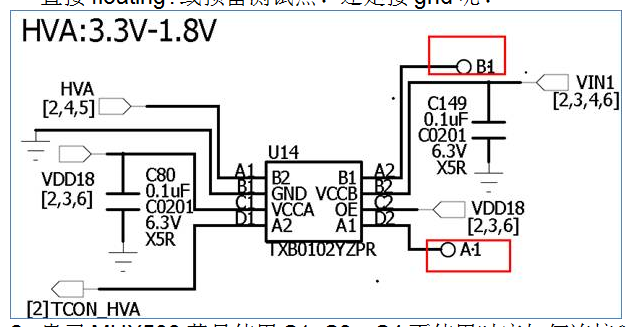

My customer only using one channel( port ) for their application. How could they set the unused port( channel )? Floating ? Connecting to GND ?

over 7 years ago

0 April Jiang over 7 years ago

TI__Intellectual 830 points

0 Emrys Maier over 7 years ago in reply to April Jiang

TI__Guru* 97046 points

Hello April,
For the TXB0102 (and all devices in the TXB family), the unused pins can be:

(1) Both tied to ground
(2) Both left floating
(3) One tied to ground, the other left floating
(4) Each connected directly to its appropriate supply (A1 to VCCA, B1 to VCCB)
(5) One tied to its appropriate supply V_CC(A/B), the other left floating
