SN74LVC1G08: Output Drive at 3.3 V

Tzu Ching Hsu

Prodigy 40 points

Part Number: SN74LVC1G08

Hi,

I'd like to know why output current at Vcc=3V mark in two values, ±16-mA & ±24-mA.

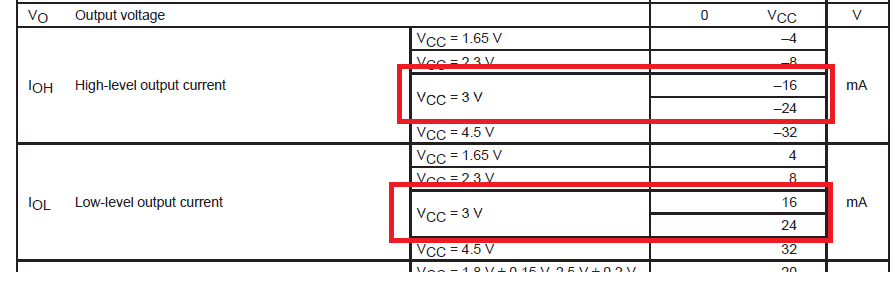

Please see the screenshot of datasheet as below.

Thank you in advance~

TC Hsu

over 6 years ago

0 Emrys Maier over 6 years ago

TI__Guru* 97046 points

Hello TC,
IOH is defined by how our VOH levels are tested. If you notice from the Electrical Characteristics table, the VOH is tested at multiple values as well. The current used will depend on the desired output voltage.
