TXS0102: Can TXS0102 be used as a replacement for SN74AVC2T245 with a uBlox SARA-G340 (TXD and RXD lines only)

ajs

Part Number: TXS0102
Other Parts Discussed in Thread: TXB0102, 2N7001T

Hi,

I'm trying to replace a part recommended by uBlox and was wondering if TXS0102 would be a proper replacement to avoid the direction pins circuitry altogether.

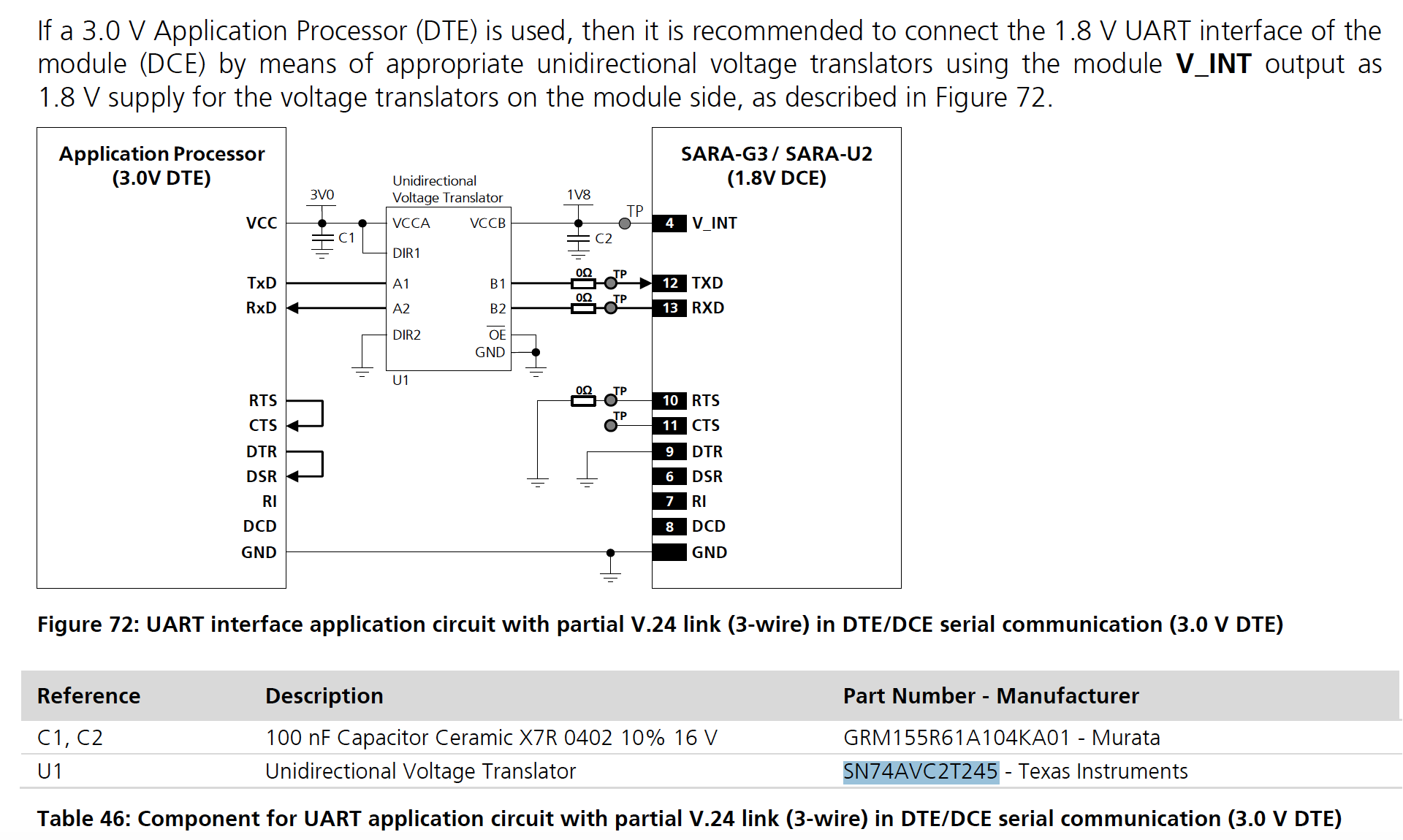

The circuit I'm interested in is the following (copied from uBlox SARA-G340 integration manual page 130):

Many thanks for your comments.

Cheers

ajs

over 6 years ago

0 Dylan Hubbard over 6 years ago

TI__Mastermind 45915 points

Hi ajs,

They won't be pin to pin compatible, but you could use a TXB0102 for this. For the device used in their reference schematic, the direction pins can be tied directly to GND or VCC to have fixed directions. This makes for a more simple circuit.

0 ShreyasRao over 6 years ago

TI__Guru 62200 points

Ajs,

You could also consider using 2 * 2N7001T as unidirectional 1.8V <>3V translators. The DPW is 0.64mm2 package which will save board space even with 2 of them.

and the table 46 you have shown here should not say unidirectional voltage translator; since the AVC2T245 have 2 DIR pins to control the signal flow.

0 ajs over 6 years ago in reply to ShreyasRao

Prodigy 30 points

Many thanks Shreyas. This is exactly what I was looking for :-)

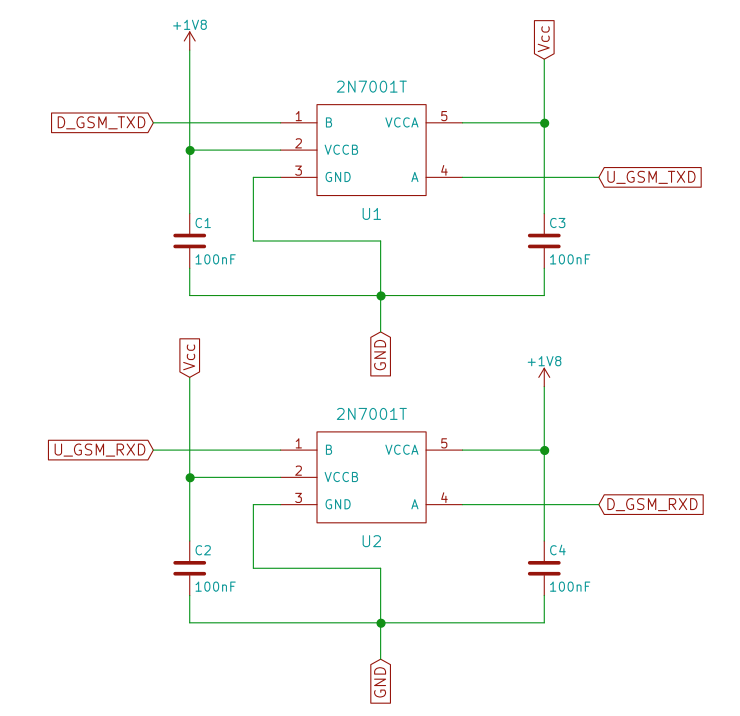

Just to be on the safe side I believe something like this could work? U_ means the processor side working at 3.3v (Vcc) and D_ means the SARA device working at 1.8v.

For the first circuit, the processor transmits on port A and SARA receives on port B.

On the second circuit SARA transmits on port A and the processor receives on port B.

0 ShreyasRao over 6 years ago in reply to ajs

TI__Guru 62200 points

Ajs,

Yes, this looks good. I am working on an app note talking about the UART and other interfaces which could use the 2N7001T device which should be released soon.
Let me know if you need anything else.

0 ajs over 6 years ago in reply to ShreyasRao

Prodigy 30 points

Great! Many thanks once more. And good luck with the app note. Will surely read it :-)

0 ShreyasRao over 6 years ago in reply to ajs

TI__Guru 62200 points

Thanks ajs, good luck.
