SN74LVC1T45: SN74LVC1T45 output is too much rising edge noise

mai xue

Prodigy 50 points

Part Number: SN74LVC1T45

SN74LVC1T45 output is too much rising edge noise.

over 6 years ago

0 ShreyasRao over 6 years ago

TI__Guru 62060 points

Hi EE,

Please send additional scopeshots (high resolution) on the input, Vcca,Vccb if possible.

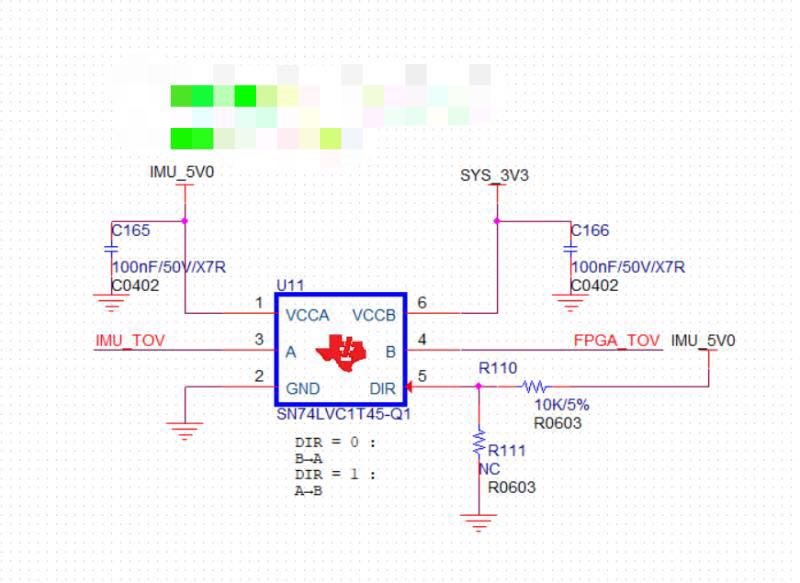

If there is a schematic which you can share, will be helpful as well.

0 mai xue over 6 years ago in reply to ShreyasRao

Prodigy 50 points

0 ShreyasRao over 6 years ago in reply to mai xue

TI__Guru 62060 points

What is it being connected to? Scopeshots on the input pins available?

0 mai xue over 6 years ago in reply to ShreyasRao

Prodigy 50 points

SN74LVC1T45 input is 125Hz TOV signal from IMU Stim300. And SN74LVC1T45 output is FPGA.

0 ShreyasRao over 6 years ago in reply to mai xue

TI__Guru 62060 points

EE,
The frequency is low enough and shouldnt be a concern.
have you tried another device preferably from a different shipped order?

0 mai xue over 6 years ago in reply to ShreyasRao

Prodigy 50 points

I have tried it but still too much noise.And when I use MOS Conversion Circuit it works good.

0 ShreyasRao over 6 years ago in reply to mai xue

TI__Guru 62060 points

What is that MOS conversion circuit? Is it only using the FET transistors to enable translation?

0 mai xue over 6 years ago in reply to ShreyasRao

Prodigy 50 points

Yes，i mean MOSFET.
