TXB0304: IBIS module issue

Lacey Lin

Intellectual 2900 points

Part Number: TXB0304

Hi team,

My customer is using the TXB0304 IBIS module to do the simulation.

The module is as below:

They use the module with one shot.

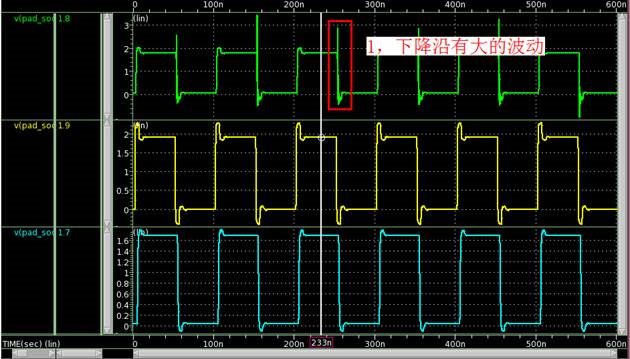

But when they add the input in A, the input of B has large shot as below:

The wave are the input of B and in the TC,BC,WC simulation condition.

Can you help to comment what may be the cause？

Lacey

Thanks a lot!

over 6 years ago

0 Emrys Maier over 6 years ago

TI__Guru* 97066 points

Hi Lacey,

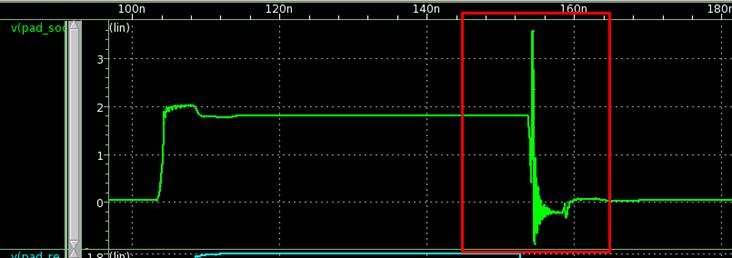

Can you get a zoomed in shot of the red box region of the waveform? I'd like to see what's happening exactly on that falling edge.

Also, can you get the simulation schematic?

0 Lacey Lin over 6 years ago in reply to Emrys Maier

TI__Intellectual 2900 points

Hi Emrys,

Update the waveform.

Please help to check.

Thanks a lot!

0 Emrys Maier over 6 years ago in reply to Lacey Lin

TI__Guru* 97066 points

In order to simulate this I need to see the full simulation schematic -- at least what is connected as a load and input.

0 Lacey Lin over 6 years ago in reply to Emrys Maier

TI__Intellectual 2900 points

Hi Emrys，

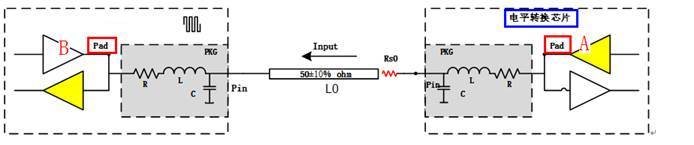

Does picture I post in the first one can show the simulation circuit?
Lacey
Thanks a lot!

0 Emrys Maier over 6 years ago in reply to Lacey Lin

TI__Guru* 97066 points

No, the load conditions are not shown -- I need to know the transmission line length at a minimum -- there's also a resistor shown that doesn't have a value. It would be best if I can get a screenshot directly from the simulator.

0 ShreyasRao over 6 years ago in reply to Emrys Maier

TI__Guru 62600 points

Hi Lacey,

This has been taken into email discussion.
with your permission will close this.
If anything else you need on this one, please respond to open the thread again.
