SN74LVC8T245: Conversion from B side to A side

Shuji Ishiwata

Part Number: SN74LVC8T245
Other Parts Discussed in Thread: SN74AXC8T245

Hi Team,

I have a question on SN74LVC8T245.
I am thinking of converting from 1.8V to 3.3V.
Is 1.8V input on B side (Input) and 3.3V output on A side (Output) possible?
Is the condition VCCA <VCCB mandatory?

Best Regards,
Ishiwata

over 6 years ago

0 Clemens Ladisch over 6 years ago

Guru 316640 points

There is no "VCCA <VCCB" condition.

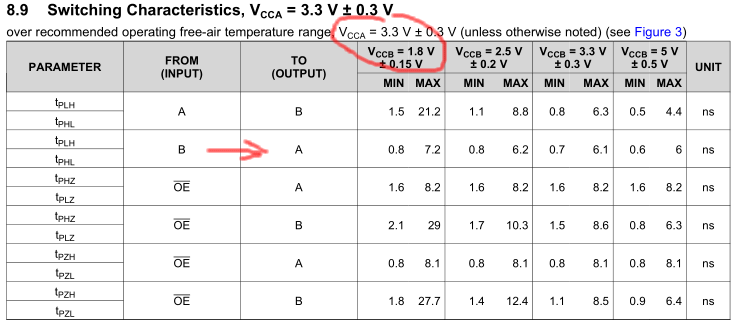

In fact, the datasheet tells you explicitly about this case:

0 ShreyasRao over 6 years ago

TI__Guru 61970 points

Ishiwata,

Are you using all the 8 channels on the device? Is there an interface supported here and any requirements on the data rate /speed?
Would you consider using the SN74AXC8T245 which is optimized for the 1.8V<> 3.3V operation?

0 Shuji Ishiwata over 6 years ago in reply to ShreyasRao

Mastermind 7785 points

Shreyas,

Thank you for your support.

I did not see the content described in the data sheet. I'm sorry.

Customers will use all 8 channels of this device.
I don't think there are any special requirements for data rates.

Best Regards,
Ishiwata

0 ShreyasRao over 6 years ago in reply to Shuji Ishiwata

TI__Guru 61970 points

Ishwaita,

There is no restriction on Vcca or Vccb for the SN74AXC8T245. The dual rails are fully configurable across the 0.65 to 3.6V voltage range.

In case you have more information on the spec requirements, interface etc, please let us know.
