Part Number: SN74LVC16T245

Hi:

SN74LVC16T245DGGR chip VCC is 1.8V, input pin can be 3.3V level (long-term work)? Thanks you!

over 6 years ago

0 Dylan Hubbard over 6 years ago

TI__Mastermind 45725 points

Hi,

Yes this will be fine, this device has over voltage tolerant inputs.

0 Emrys Maier over 6 years ago

TI__Guru* 97046 points

Hello,

There's an FAQ that covers this topic located here:

Please let me know if I can be of further assistance -- and if this resolves your question, please click the green "this resolved my issue" button.

0 frank du over 6 years ago in reply to Dylan Hubbard

Prodigy 20 points

Dear Dylan: would you please explain "over voltage tolerant" ? Does it mean the positibe clamp diode on the input pin? can it work reliably long-term?

0 Clemens Ladisch over 6 years ago in reply to frank du

Guru 316510 points

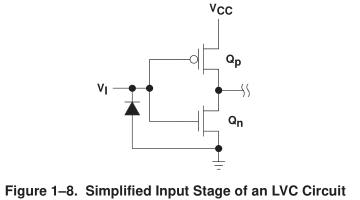

The LVC Designer's Guide (SCBA010) shows:

To protect against positive ESD, the diode is the equivalent of a Zener/TVS diode with a breakdown voltaga of more than 6.5 V. This is specified in the absolute maximum ratings, and guaranteed over the lifetime of the device.
