TXB0104: What if short the out put together?

Marc Liu

Expert 3660 points

Part Number: TXB0104
Other Parts Discussed in Thread: TXS0104E, LSF0108

Hi team,

Customer is using TXB0104 to transfer between 1.8V and 3.3V.

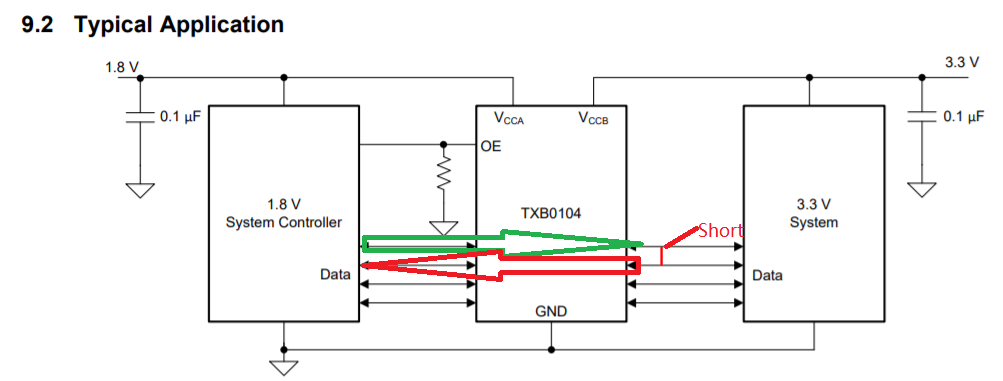

But they find when connect the two out put together like below shows, the short voltage in not 3.3V but 1.7V.

So the question is whether the two out put can be shorted together or not? Thank you.

Let me know if you have any more questions.

Thank you!

Marc

over 6 years ago

0 Clemens Ladisch over 6 years ago

Guru 317080 points

To allow automatic direction sensing, TXB translators have a very low drive strength, and require other devices to have a high drive strength so that they can override the voltage. So it is not possible to connect two TXB I/Os together. (As you can see, neither pin knows whether it is input or output.)

It might be possible to replace the TXB0104 with a TXS0104E.

0 Marc Liu over 6 years ago in reply to Clemens Ladisch

TI__Expert 3660 points

Hi Clemens,

Thanks for your kindly reply!

Is the TXS0104 and LSF0108 similar in function? What are the other differences besides ESD protection and channel count and drive ability. Thank you!

0 Clemens Ladisch over 6 years ago in reply to Marc Liu

Guru 317080 points

The LSF0104 and TXS0104E have the same drive strength: zero.

See [FAQ] What is the difference between TXS TXB and LSF devices?

0 ShreyasRao over 6 years ago in reply to Clemens Ladisch

TI__Guru 62190 points

Thanks Clemens.
Marc,
Please let us know if anything else.
