SN74AXC1T45: Footprint/Land Pattern Clarification

Renan Santos Adriano

Part Number: SN74AXC1T45

Hi Team,

My customer would like to clarify the Footprint/Land Pattern for our SN74AXC1T45 (SN74AXC1T45DTQR). He exported the .bxl file to Allegro 16.6. He noticed that the pitch/distance between pin 6 and pin 4 is 0.8mm in the datasheet while in the footprint exported it is 0.9mm.

Looking forward to your reply.

Regards,

-Renan

over 6 years ago

0 ShreyasRao over 6 years ago

TI__Guru 61710 points

Hi Renan,

I will have to contact the modeling team on this.

The datasheet will be right most of the times and the .bxl file may need updating.

0 Renan Santos Adriano over 6 years ago in reply to ShreyasRao

TI__Mastermind 22220 points

Hi Shreyas,

Thanks for the confirmation.

Regards,

-Renan

0 ShreyasRao over 6 years ago in reply to Renan Santos Adriano

TI__Guru 61710 points

Hi Renan,

This is the response from the altium team who develops the bxl files.

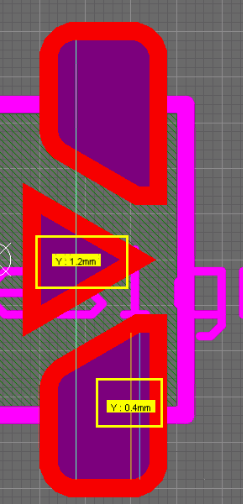

"Pad 6 & 4 are in irregular shape, was the customer measuring from the pad's center in Y-axis? as the dimensions shows below, the pitch is 1.2-0.4/2=0.8, which matches the drawing."
