LSF0108: What input impedance when EN pin=Low?

user4979899

Part Number: LSF0108

Hi Sir.

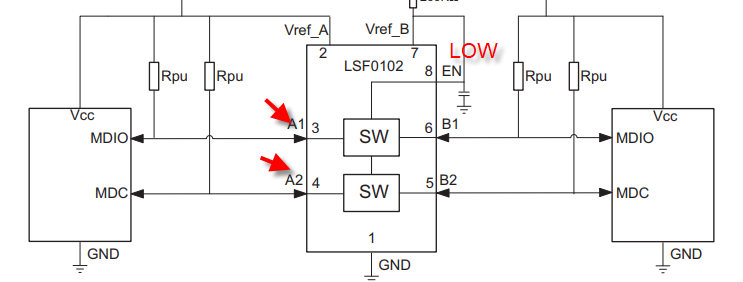

We are using LSF0108 for MDC/MDIO level shift 1.2V to 3.3V.

What input impedance of A1, A2 when EN pin=Low?

0 Clemens Ladisch over 6 years ago

Guru 317260 points

When the EN pin is pulled low, the internal switches never switch on, so the pins themselves have high impedance, and the two sides are disconnected.

However, the external pull-up resistors have a not-so-high impedance.
