SN74LVC1G126: Junction-to-case Thermal Resistance

Elisha Tarroza71

Part Number: SN74LVC1G126

Hello,

Can you please share the junction-to-case thermal resistance of this part?

Thank you!

0 Karan Kotadia over 6 years ago

Hi Elisha,

Please let me know which package you want the thermals for. They change based on package type.

Thanks!

-Karan

0 Elisha Tarroza71 over 6 years ago in reply to Karan Kotadia

Hello!

Sorry forgot to include the complete details.
For SOT-SC70 (DCK), please. The one with part number 74LVC1G126DCKRG4.

Thanks a lot! :)

0 Karan Kotadia over 6 years ago in reply to Elisha Tarroza71

Hi!

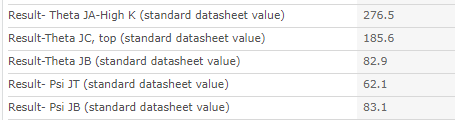

Here are the thermals for SN74LVC1G126 DCK package.

Thanks!

-Karan
