SN74AXC8T245: can this device run 8 LEDs?

Javcel

Part Number: SN74AXC8T245

Hi,

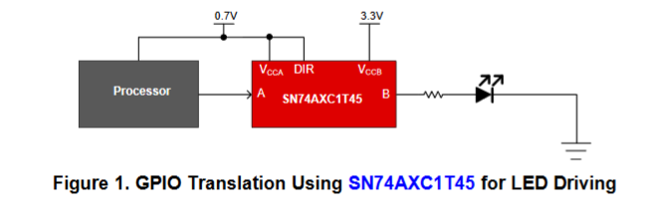

I am using this IC in a new design as pure voltage translator. Reading the documentation for its evaluation board I saw an application as LED driver from a 1.8V GPIO and it is quite neat.

Is it possible/recommended to drive up to 8 LEDs? The total current through the LEDs is well below the 50ma maximum current stated in the datasheet.

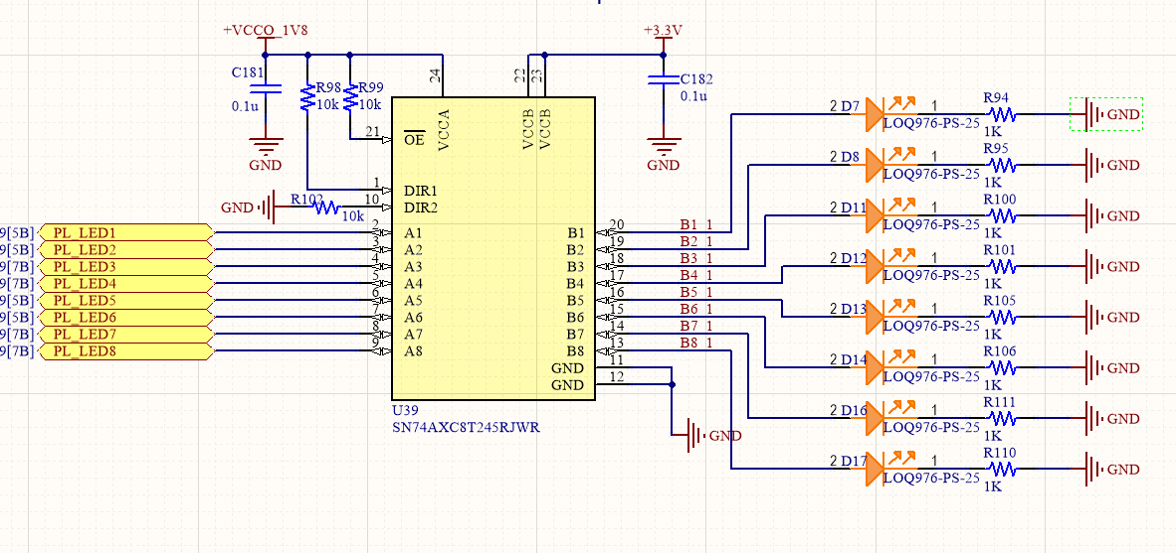

This is what I am trying to do to be precise. Is it advisable?

Thanks a million.

Kind regards,

over 5 years ago

0 Clemens Ladisch over 5 years ago

Guru 317260 points

The SN74AXC8T245 would be perfectly fine with these loads.

But you could simply use buffers or inverters with overvoltage-tolerant open-drain outputs to drive the low side of the LEDs.

0 Karan Kotadia over 5 years ago in reply to Clemens Ladisch

TI__Genius 16735 points

Hi,

There are many ways to drive LED's. They way you have chosen to do this is perfectly fine. Here is a Logic minute video on driving LED's.

https://training.ti.com/tlm-app-drivingled?context=1134826-1139263-1137907

Thanks!

-Karan

0 Javcel over 5 years ago in reply to Karan Kotadia

Intellectual 470 points

Thanks for your reply! I like the SN74AXC8T245 because it is very compact!

I will keep in mind the buffers for future designs as well

Logic

Logic forum

SN74AXC8T245: can this device run 8 LEDs?
