TXS02612: Packaging Question: Two Mechanical Drawings for WQFN?

Erik Anderson41

Intellectual 925 points

Part Number: TXS02612

Hi,

From your datasheet:

http://www.ti.com/lit/ds/symlink/txs02612.pdf

Pg 21 and 22 both have mechanical drawings that are different. Which one should I use for the 24-QFN?

thanks!

Erik

over 5 years ago

0 Chad Crosby over 5 years ago

TI__Expert 6680 points

Hi Erik,

All packages that TI uses can be found under the following website:

http://www.ti.com/support-packaging/packaging-tools/find-packages.html

The package you're looking for is under the Quad Flat No-Lead package (QFN) section. From there, you will be able to find the RTW package drawing.

Thanks!

Chad Crosby

0 Erik Anderson41 over 5 years ago in reply to Chad Crosby

Intellectual 925 points

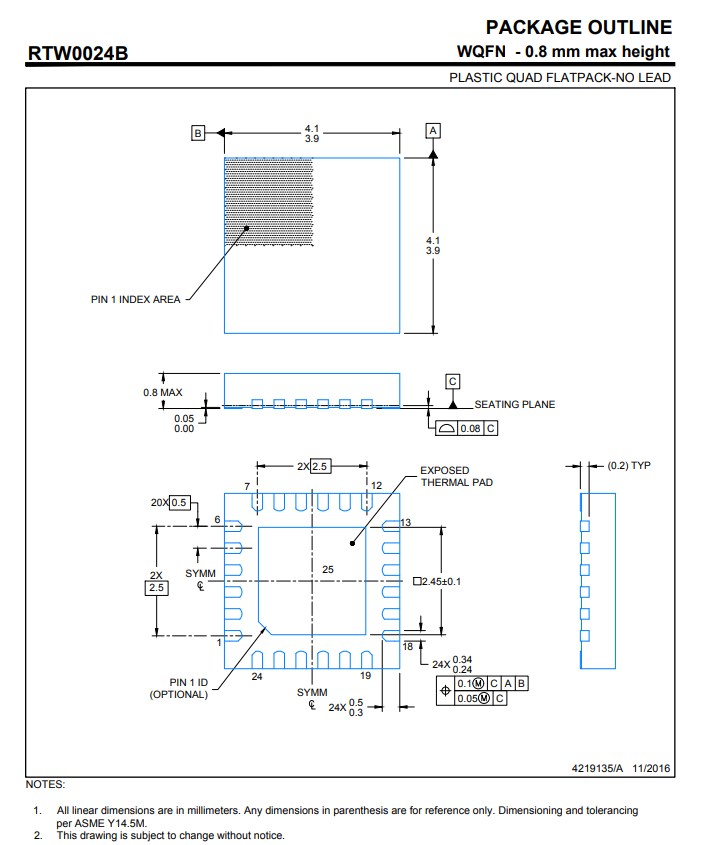

Thanks, it appears then that the answer to my question is page 21. Why then is there another (different) RTW drawing on page 22?! See below

0 Chad Crosby over 5 years ago in reply to Erik Anderson41

TI__Expert 6680 points

Hi Erik,

So it appears that the blue package diagram actually is the most up to date version of the package drawing, and I've went ahead and submitted this document to get fixed.

Thanks!

Chad Crosby

0 Erik Anderson41 over 5 years ago in reply to Chad Crosby

Intellectual 925 points

Thank you Chad!
