TXS0104E: Whether VCCA and VCCB voltage can be the same, for example, both are 3.3V.

Ansel Song

Expert 3890 points

Part Number: TXS0104E
Other Parts Discussed in Thread: SN74CBTLV3125

Hi Team，

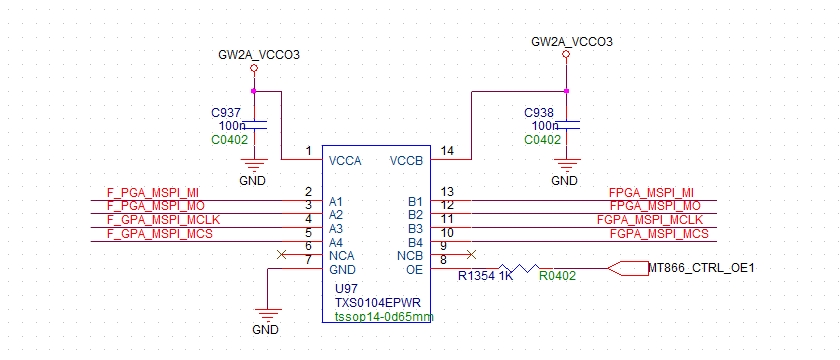

Is the following schematic design possible? VCCA is the same as VCCB, this circuit is used as a switch. Thank you.

Best regards,

Ansel Song

over 5 years ago

0 Clemens Ladisch over 5 years ago

Guru 317370 points

Looks OK, but I do not know anything about the four signals (the TXS's internal pull-up resistors might conflict with any external pull-down resistors).

Why not use an actual switch like the SN74CBTLV3125‌/6, which would be cheaper?

0 Dylan Hubbard over 5 years ago in reply to Clemens Ladisch

TI__Mastermind 46045 points

Hey Ansel,

What interface is this for, and exactly what is trying to be achieved with this device?

Logic

Logic forum
