Hi Team, we would like to inquire if the PSpice model is available for this device.
Thank you very much.
Regards,
Mark
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.
Hi Team, we would like to inquire if the PSpice model is available for this device.
Thank you very much.
Regards,
Mark
Hi Mark,
Unfortunately no, there's not currently a PSpice model available for the SN74LVC1G80, and I'll need to make it. Please allow me a few days to get back to you on this.
Thanks!
Chad Crosby
Hi Chad, Thank you for responding, We will be waiting for your response.
Thanks!
-Mark
Hi Chad, the customer is asking if he can have it on .olb for orcad, is that possible?
Thank you very much.
Regards,
Mark
Hi Mark,
Yes, I should be able to do this. Please allow me a few more days to get that ready.
Thanks!
Chad Crosby
Hi Mark,
Please see the attached .OLB file.
If you have any questions, please don't hesitate to reach back out.
Thanks!
Chad Crosby
Hi Chad,
The customer encountered some errors
ERROR (ORPSIM-16366)
ERROR (ORPSIM-16364)
ERROR (ORPSIM-15108)
We are hoping if you can assist us further.
Regards,
Mark
Hi Mark,
Could you attach a screenshot of the errors? When do these errors occur (loading the model or simulation)? Are these errors related to the PSpice model or the .OLB file? What software is the customer using to simulate the model?
Thanks!
Chad Crosby
Hi Mark,
The .CIR file needs to be linked to the .OLB file inside of OrCAD. The customer will need to open the properties of the SN74LVC1G80 symbol, and link the .CIR file under the Implementation Path field.
Thanks!
Chad Crosby
Hi Chad ,
I have proceeded as per your instruction to link .CIR file to the .OLB file inside of OrCAD.
But still its showing error while simulating.
Please help me with a solution.

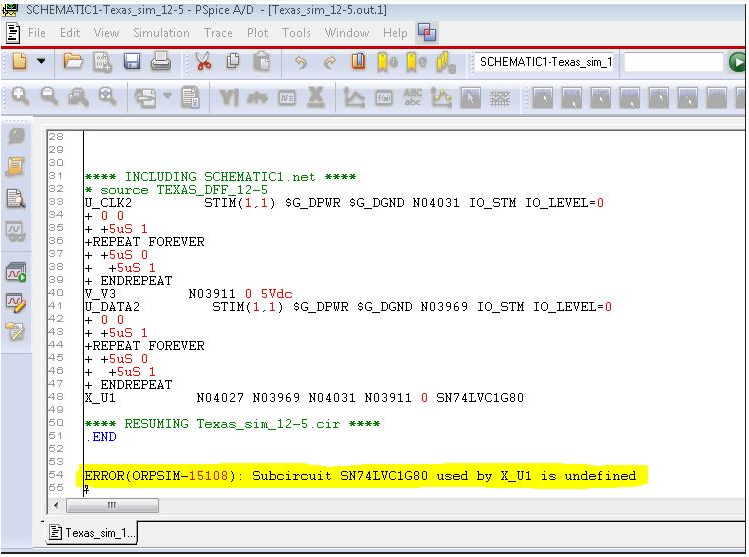

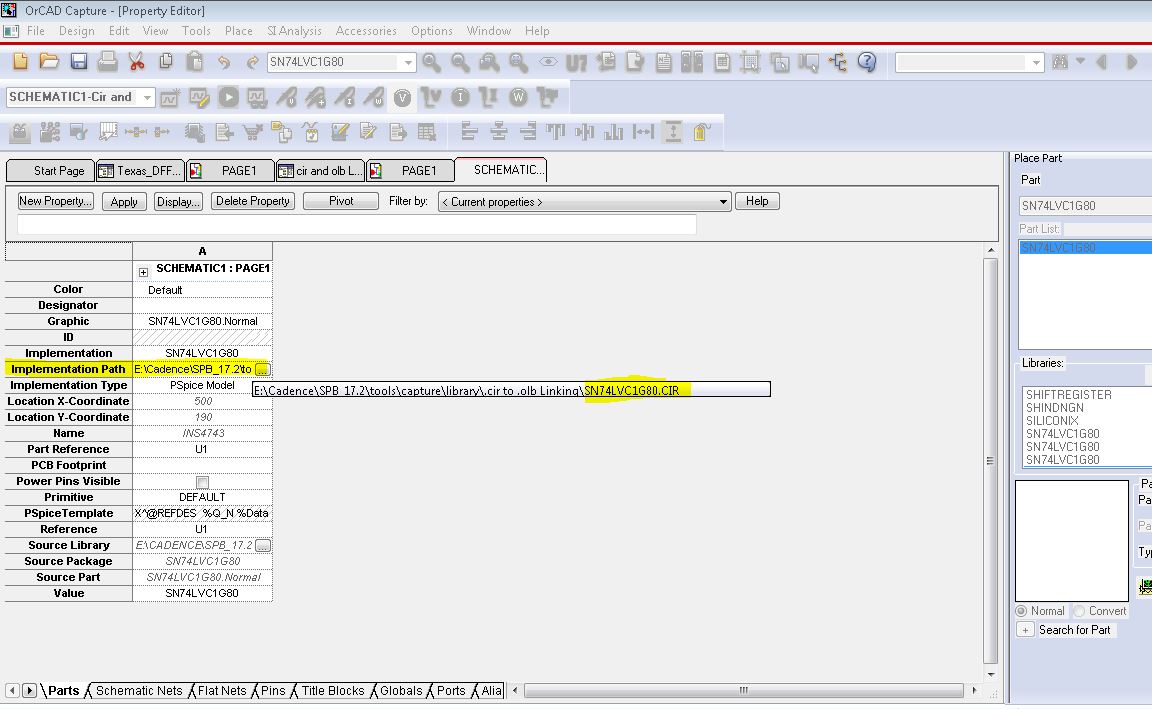

Attached the error screenshot and screenshot showing the .CIR file linked under the Implementation Path field.
take a look.
Thanks,
KAMESH J
Hi Kamesh,
I'm going to take a look at this, please allow me a week to get back with you.
Thanks!
Chad Crosby
Hi Kamesh,
When linking the .CIR file to the .OLB file within OrCAD, you'll need to do that within the Simulation profile as well. Under the "Configuration Files" subsection, you'll need to select the "Library" Category. Once there, click browse and locate your .CIR file (you may need to change the filetypes on the browse window to "All file types"). Once you've located your .CIR file, you'll need to click the "Add to Design" button, and then "Apply".
On further testing, it seems that our current flip flop models are incompatible with PSpice, and I'm working on fixing these models as soon as I can. These models should still work on TINA-TI.
Thanks!
Chad Crosby
